Design and produce a performance ultralight glider for a wide range of pilots.
The outcome is that the Aravis is the lightest; small-packed-volume; "double-skin" paraglider in our range. Hike & Fly enthusiasts as well as novice pilots will find it to be a simple and reliable wing for their flying. The Aravis is one of the highest performing lightweight EN A paragliders available on the market.
The canopy is made using lightweight materials. On a heavily stressed leading edge, Skytex 32 provides an excellent compromise between lightness and robustness. The rest of the canopy uses a Skytex 27 with a double coating, which, despite its extremely low weight, also has very good resistance to aging. The Nitinol rod system of rib reinforcement provides optimal rigidity of the canopy and guarantees the stability of the clean canopy surface, even if the wing is carelessly glider packed.

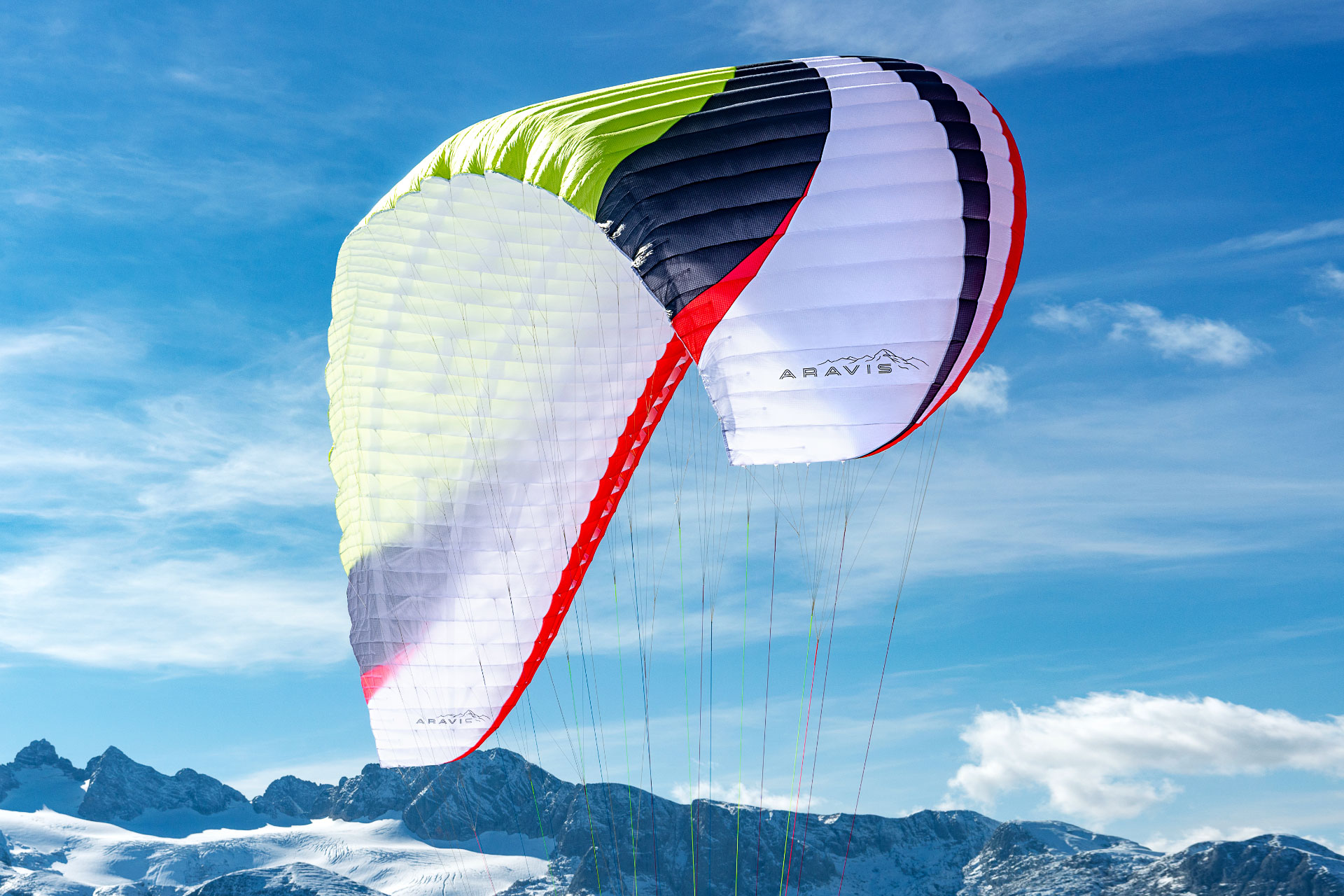

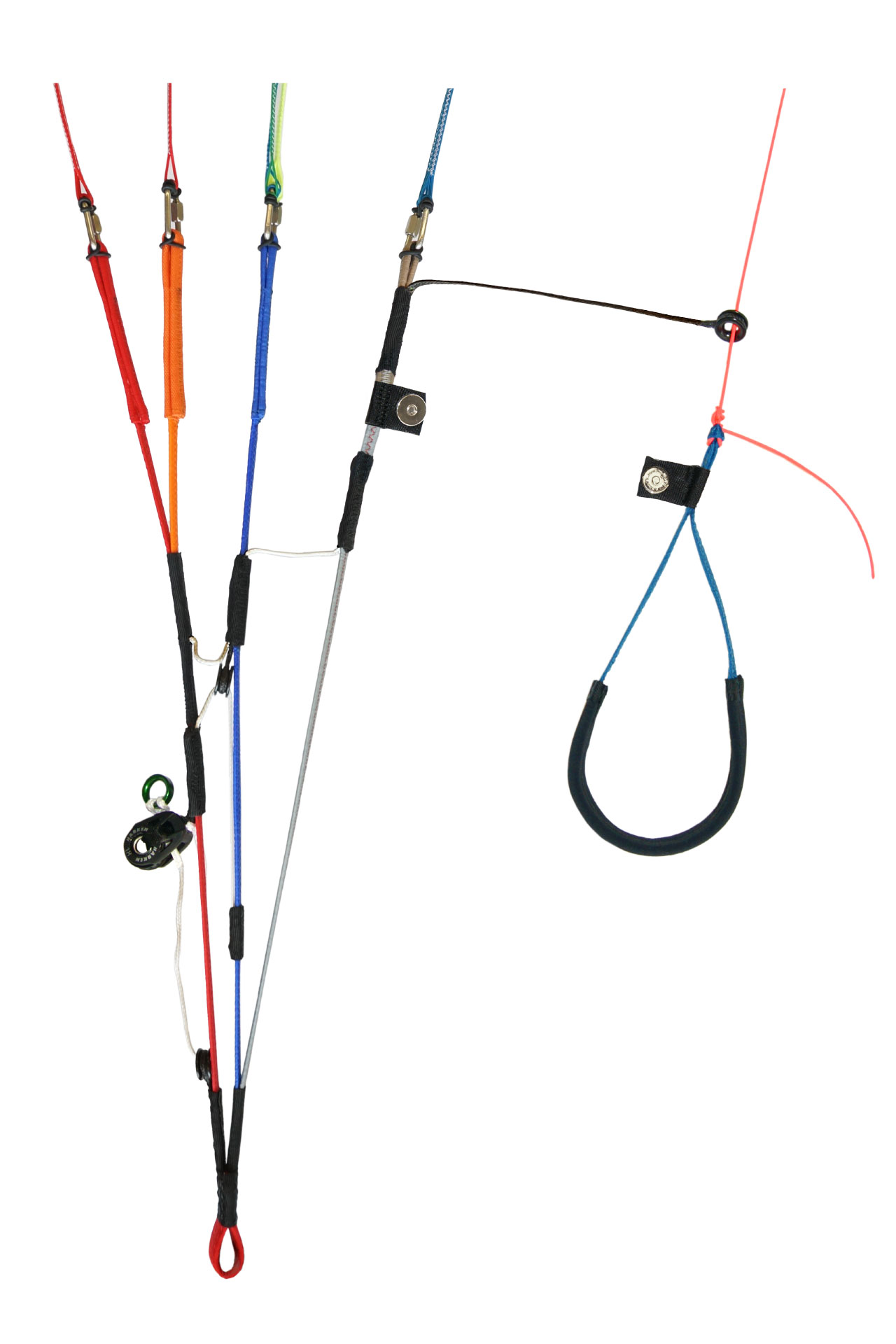

The canopy itself is designed for maximum aerodynamic cleanliness. It features: Triple positive 3D shaping, negative 3D leading edge shaping, mini-ribs on the trailing edge and newly shaped stabilizers. Optimized diameter of ARAMID unsheathed lines in the gallery and PPSLS main lines together with narrow light risers reduce drag and increase performance. Canopy shape, 50 cells, internal structure, diagonal ribs, line geometry - all have been optimized to provide the canopy sufficient rigidity, ensuring stability and a pleasant and comfortable flight in turbulent air. The main lines are connected to the colour-coded risers using small stainless steel carabiners. The canopy is equipped with loops at air intakes, which can help to fix the canopy on a slippery surface (snow).

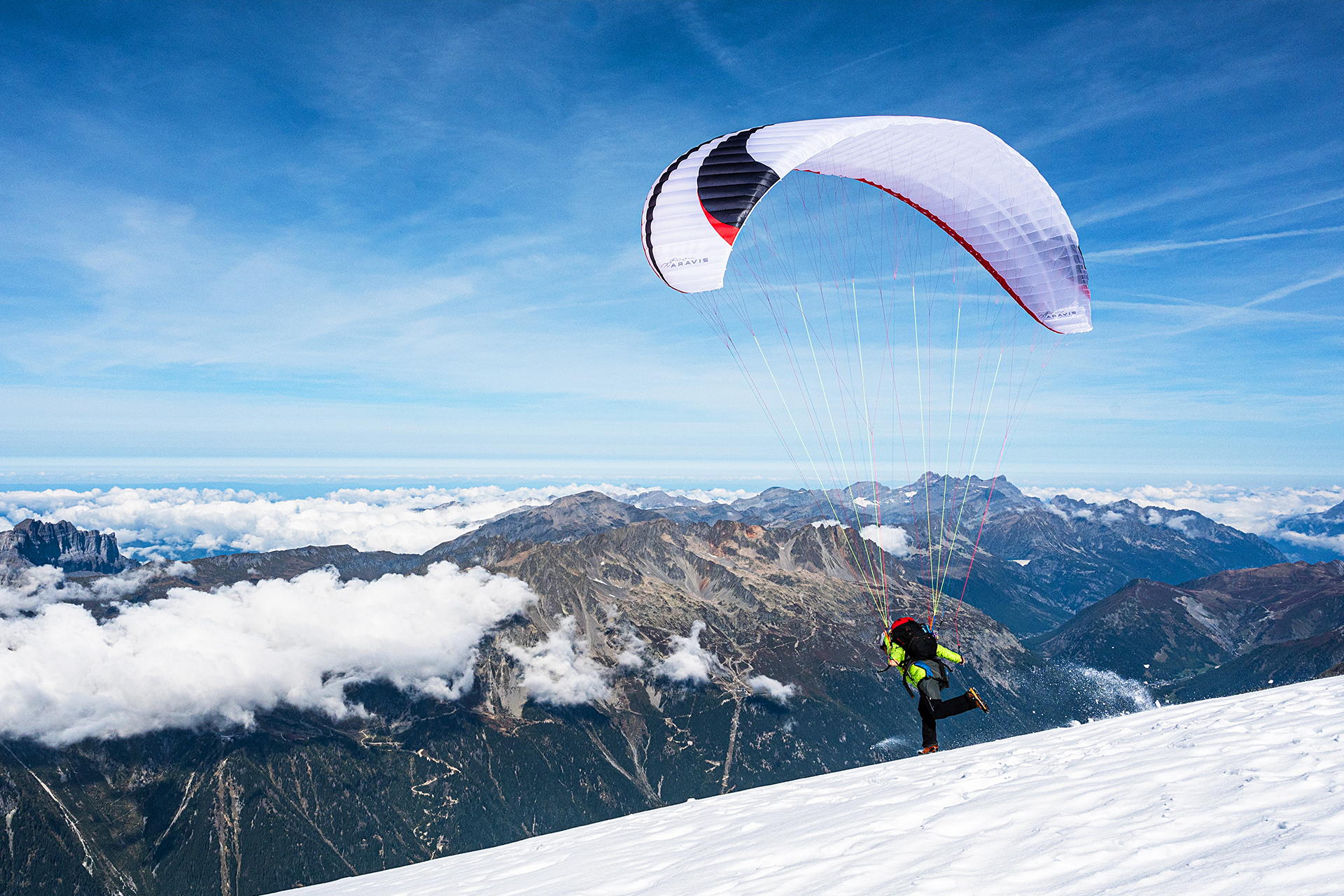

Easy take offs - easy inflation and lifting of the canopy without over-shooting are the main advantages of this paraglider. Ideal glider behaviour for difficult take offs.
In flight, the canopy provides excellent feedback, promptly responds to pilot input and strengthens the pilot's confidence from the very beginning. He can focus on the essentials even in the most demanding conditions. 40% of the control range can be safely used for easy operation even in strong thermal cores.
Steering forces are low and progressively increase. The Aravis has exceptional passive stability, i.e. the canopy forgives a lot if it is flown less actively.

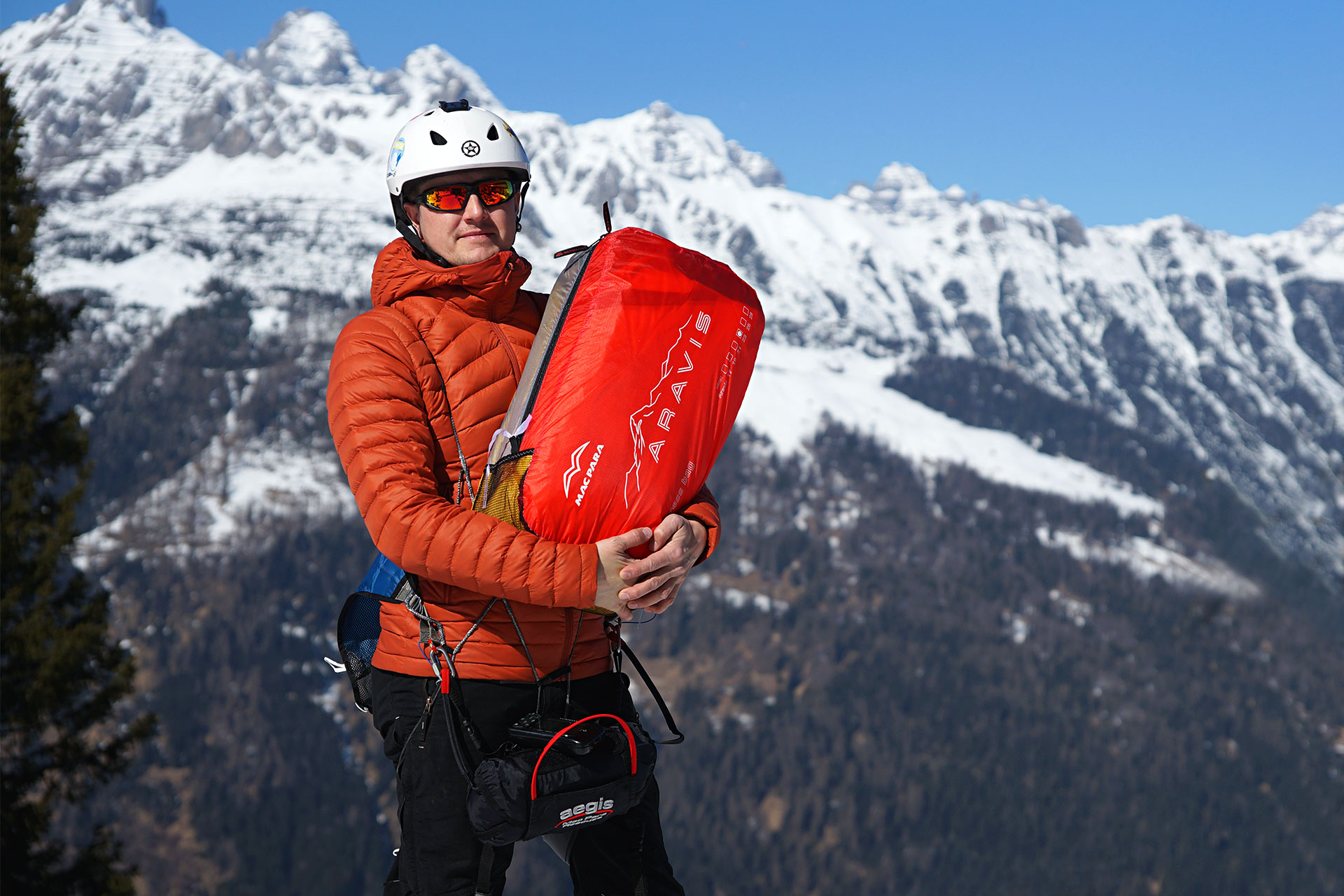

Extremely low weight, the possibility of a small volume during transport pushes the boundary of what is possible during hike and fly.
In five sizes, the Aravis is certified in the EN A category in the entire (very wide) weight range. From the lower limit to the middle of the weight range, the glider is suitable for beginner pilots and relaxed thermal flying. At maximum load, its sporty character is more pronounced and therefore the higher load is intended more for more experienced pilots.
The two smallest sizes, the Aravis 17 and the Aravis 19, are specifically designed for Hike & Fly activities.
Due to the higher canopy load, check very carefully whether the chosen size corresponds to your piloting skills and experience.
Well-balanced with unrivalled penetration against the wind, comparative tests have confirmed that there is no doubt that the Aravis is one of the most powerful lightweight paragliders available on the market. Relaxing handling is combined with good climb characteristics. Wherever you go, the precision and range of control will delight you.

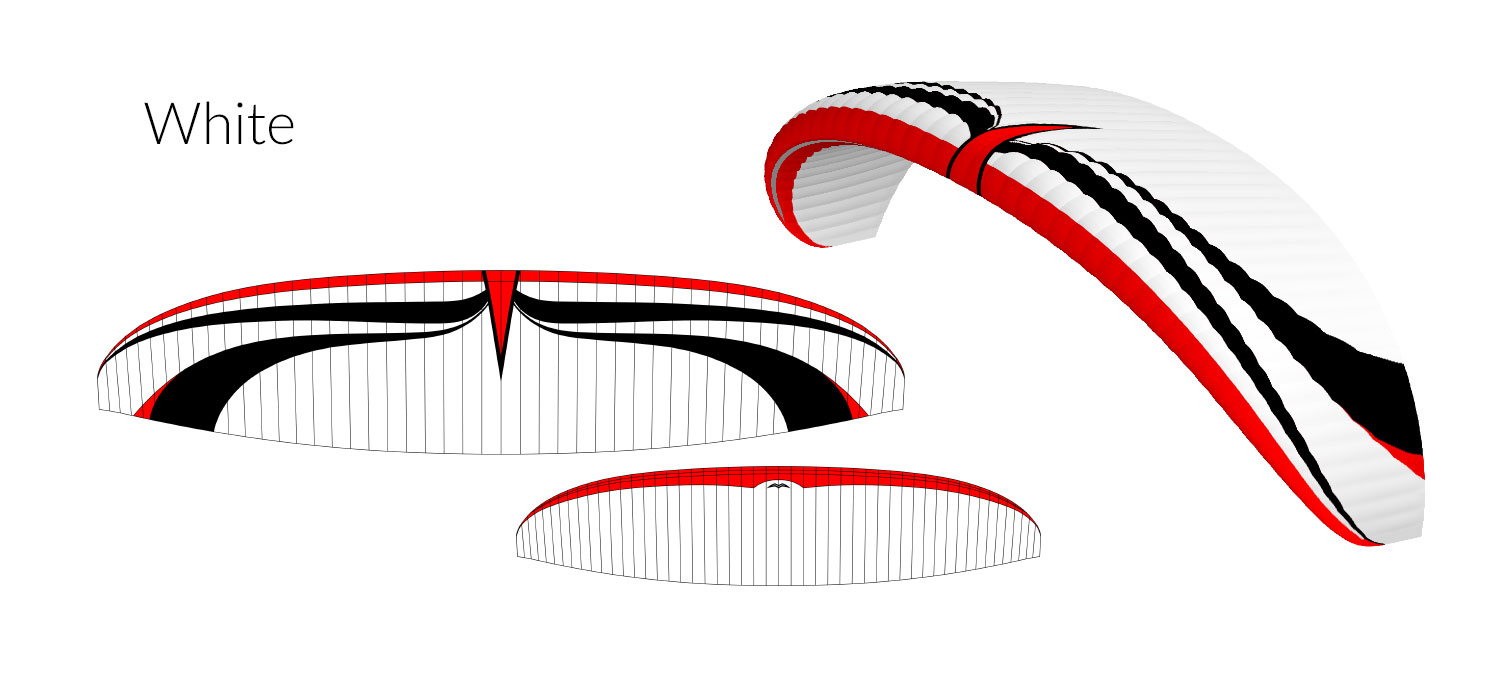

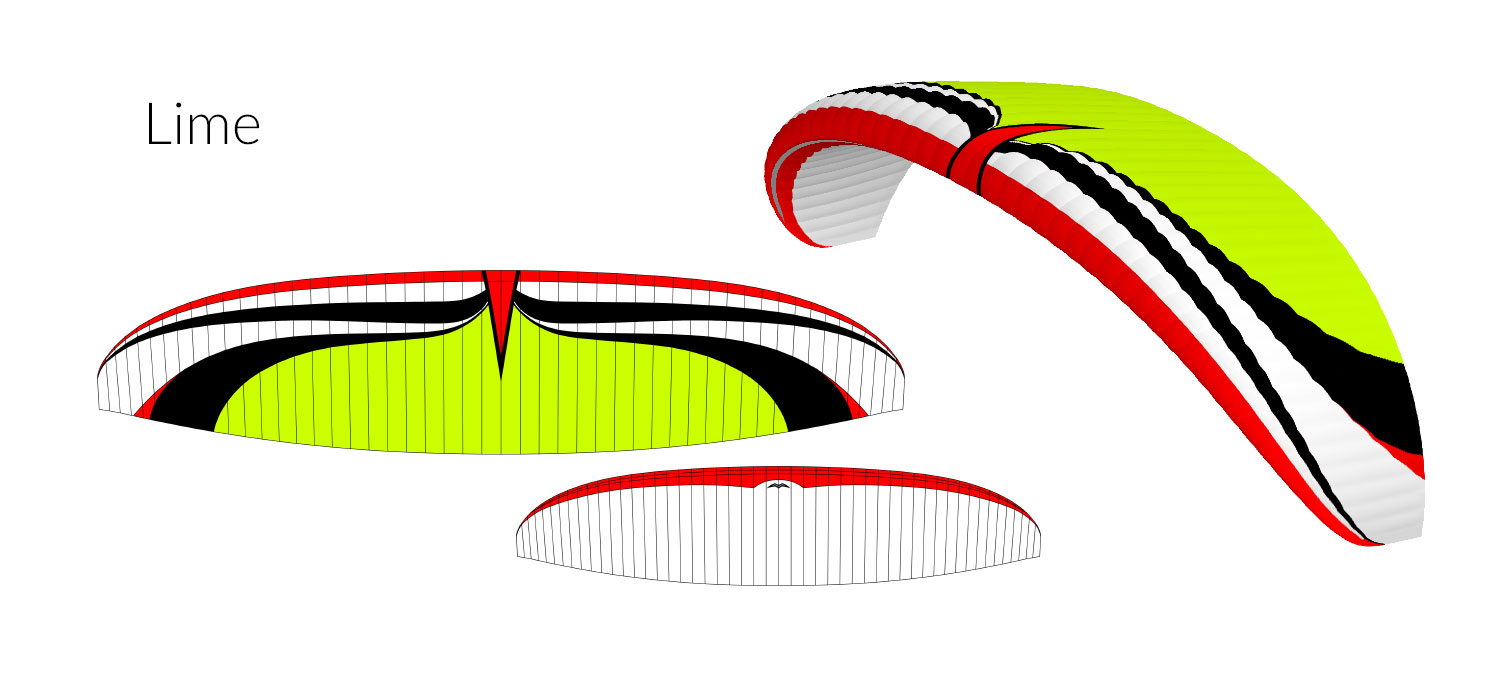

The Aravis is available in sizes 17,19,21,23,25 and 28 and covers the weight range from 50 kg to 115 kg. Serial designs are named WHITE and LIME.
| Aravis | 17 (XXS) | 19 (XS) | 21 (S) | 23 (M) | 25 (L) | 28 (XL) |
|---|---|---|---|---|---|---|
| Zoom flat [%] | 86 | 91 | 95.5 | 100 | 105.5 | 111 |
| Area flat [m2] | 16.83 | 18.85 | 20.76 | 22.76 | 25.33 | 28.04 |
| Area projected [m2] | 14.85 | 16.63 | 18.31 | 20.08 | 22.35 | 24.74 |
| Span flat [m] | 9.32 | 9.86 | 10.35 | 10.84 | 11.44 | 12.03 |
| Aspect ratio flat | 5.16 | 5.16 | 5.16 | 5.16 | 5.16 | 5.16 |
| Root cord [m] | 2.21 | 2.34 | 2.45 | 2.57 | 2.71 | 2.85 |
| Cells | 50 | 50 | 50 | 50 | 50 | 50 |
| Weight [kg] | 2.5 | 2.72 | 2.97 | 3.1 | 3.3 | 3.7 |
| Weight range *[kg] | 55 - 70 - (80**) | 55 - 80 - (90**) | 55 - 80 | 60 - 93 | 75 - 105 | 85 - 115 |
| Weight range *[lbs] | 121-154 - 176 | 121-176 - 198 | 121 - 176 | 132 - 205 | 165 - 231 | 187 - 254 |
| Min. speed [km/h] | 25 - 27 | 23 - 26 | 23 - 26 | 23 - 26 | 23 - 26 | 23 - 26 |
| Trim speed [km/h] | 37 - 43 | 37 - 43 | 37 - 43 | 37 - 43 | 37 - 43 | 37 - 43 |
| Top speed (accelerator)[km/h] | 46 - 50 | 46 - 50 | 46 - 50 | 46 - 50 | 46 - 50 | 46 - 50 |
| Glide ratio | +10 | +10 | +10 | +10 | +10 | +10 |
| Min. sink rate [m/s] | 1.05 | 1.05 | 1.05 | 1.05 | 1.05 | 1.05 |
| Certificate | EN-C | EN-A | EN-A | EN-A | EN-A | EN-A |
|
* pilot equipped = weight naked + approx. 7-15 kg (15-33 lbs) |
||||||
| Item | Material |
|---|---|
| Surface T/B Leading Edge: | Skytex 32 Universal- 32 g/m2 |
| Surface Top Trailing Edge: | Skytex 27 Classic II - E71A, 27 g/m2 |
| Surface Bottom: | Skytex 27 Classic II - E71A, 27 g/m2 |
| Main ribs: | Skytex 32 Hard - E29A, 32 g/m2 |
| Diagonal ribs: | Skytex 32 Hard - E29A, 32 g/m2 |
| Minor ribs: | Skytex 27 Classic, Hard - E71A, 27 g/m2 |
| Upper lines: | Edelrid Aramid/Kevlar 8000U -70 kg; -90 kg; -130 kg |
| Main lines: | PPSL 160; 191; 200 |
The Aravis is manufactured using the paragliding industries well established lightweight material with excellent durability; Skytex 32 on leading edge and Skytex 27 Classic II, from Porcher Sport (NCV). For the supporting and diagonal ribs we use Skytex 27 Hard. This gives the advantage of a sail that is both lightweight and very durable.
Marcus and Charlie King share the fun on this lightweight but performant EN A. Mac Para’s previous mountain wing, the Outback, came in one size only but with a huge weight range. Its replacement, the Aravis, comes in six sizes covering weights from 55kg to 115kg. We took the 19m2 XS into the mountains of the southern French Alps to try it in hike-and-fly and thermalling modes.
