Product Description

Magus

LTF/EN-D
Share

The MAGUS is a modern two-liner glider, for experienced and skilled pilots. When designing gliders, the priority for R&D team is maximum performance combined with comfort on board. Although the MAGUS is the cutting edge glider with high aspect ratio, we are convinced the MAGUS will delight the pilot with this philosophy.

Flying it

better, safer, faster… ? ...... The MAGUS delivers excellent performance through the whole speed range. The penetration against the wind is exceptional. Like by Eden 7 the leading edge of the MAGUS is using negative shaping and is combined with RFE system on panels (additional rod reinforcement in center of panel). This technology is eliminating leading edge deformations at high speeds and  provide extra performance and helps to overall stability. The benefit of this technology is increased glide and higher stability in accelerated flight.

The handling is direct and agile with efficient climb ability. (see the recommended weight range). The climbing performance and „sniffing ability“ for more lift will put smile on your face.  The canopy is neither too stiff nor does it move too much. It is well balanced and gives nice feedback to the pilot. When flying accelerated the control over rear-risers is easy with low forces.

Design

AR 7, optimized attachment points, 86 cells, clean leading edge, positive and negative 3D shapings, RFE system, special system for different accelerator travel of central and external parts of the wing, lightweight construction.

Magus

Make your own mind, test it by yourself.

The Materials

The materials on the MAGUS is a mix of  Skytex tissues from  Porcher Sport.  Light materials are combined with heavier materials for higher durability. These lightweight and high performance materials require care and caution on the ground.

Available Colours and sizes

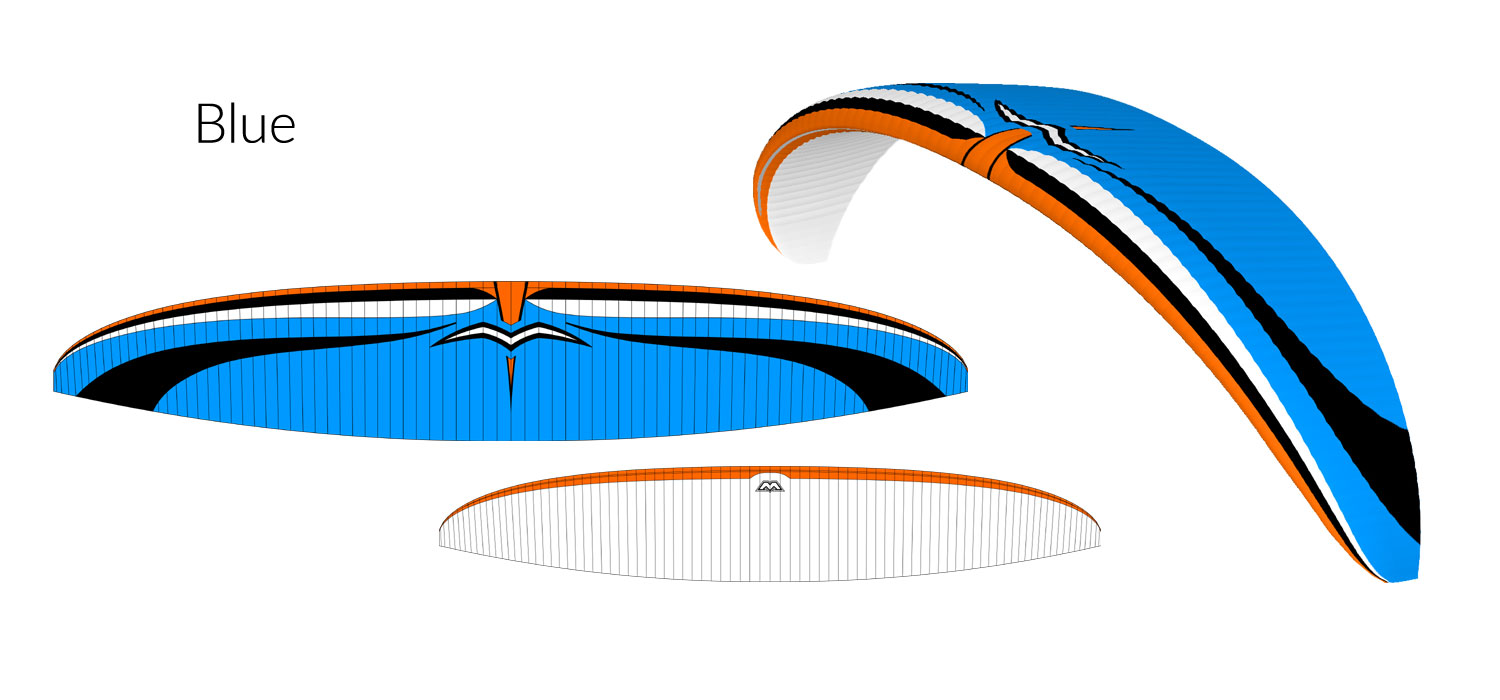

The Magus is available in 3 sizes and 2 serial designs (white and blue).

Technical Specifications

Magus 22 (S) 24 (M) 26 (L)
Zoom flat [%] 96 100 104.5
Area flat [m2] 22.35 24.25 26.48
Area projected [m2] 17.69 19.2 20.97
Span flat [m] 12.53 13.05 13.64
Aspect ratio flat 7.05 7.02 7.02
Root cord [m] 2.25 2.34 2.45
Cells 86 86 86
Weight [kg] 5.5 5.7 6
Weight range *[kg] 88 - 99 95 - 107 104 - 118
Weight range *[lbs] 194 - 218 209 - 236 229 - 260
Min. speed [km/h] 25 - 26 25 - 26 25 - 26
Trim speed [km/h] 39 - 41 39 - 41 39 - 41
Top speed (accelerator)[km/h] 60 - 62 60 - 62 60 - 62
Glide ratio +11 +11 +11
Min. sink rate [m/s] 1 1 1

* pilot equipped = weight naked + cca. 20 kg (44 lbs)

Used Materials

Item Material
Surface Top/Bottom Leading Edge Skytex 38 Universal - E25A, 38 g/m2
Surface Top Trailing Edge: Skytex 32 Universal - E3W, 32 g/m2
Surface Bottom Trailing Edge: Skytex 27 Classic II - E71A, 27 g/m2
Main ribs: Skytex 32 Hard - E29A, 32 g/m2
Diagonal ribs: Skytex 32 Hard - E29A, 32 g/m2
Minor ribs: Skytex 32 Hard - E29A, 32 g/m2
Upper lines: Edelrid Aramid/Kevlar
8000U -25; -50 ; -70; -90; -130; -190 kg
Main lines: Edelrid Aramid/Kevlar
8000U -130, -190; -280; -360 kg

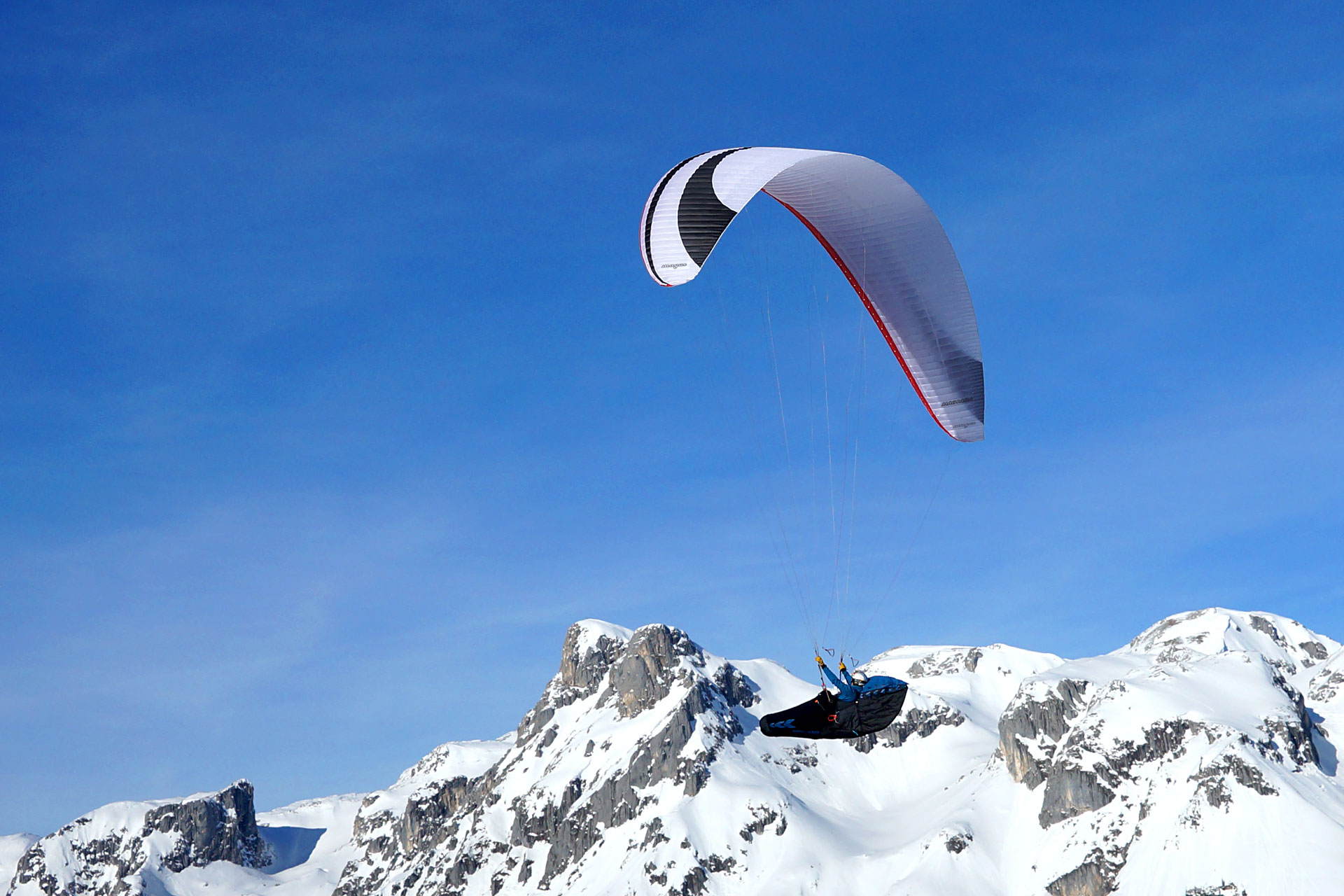

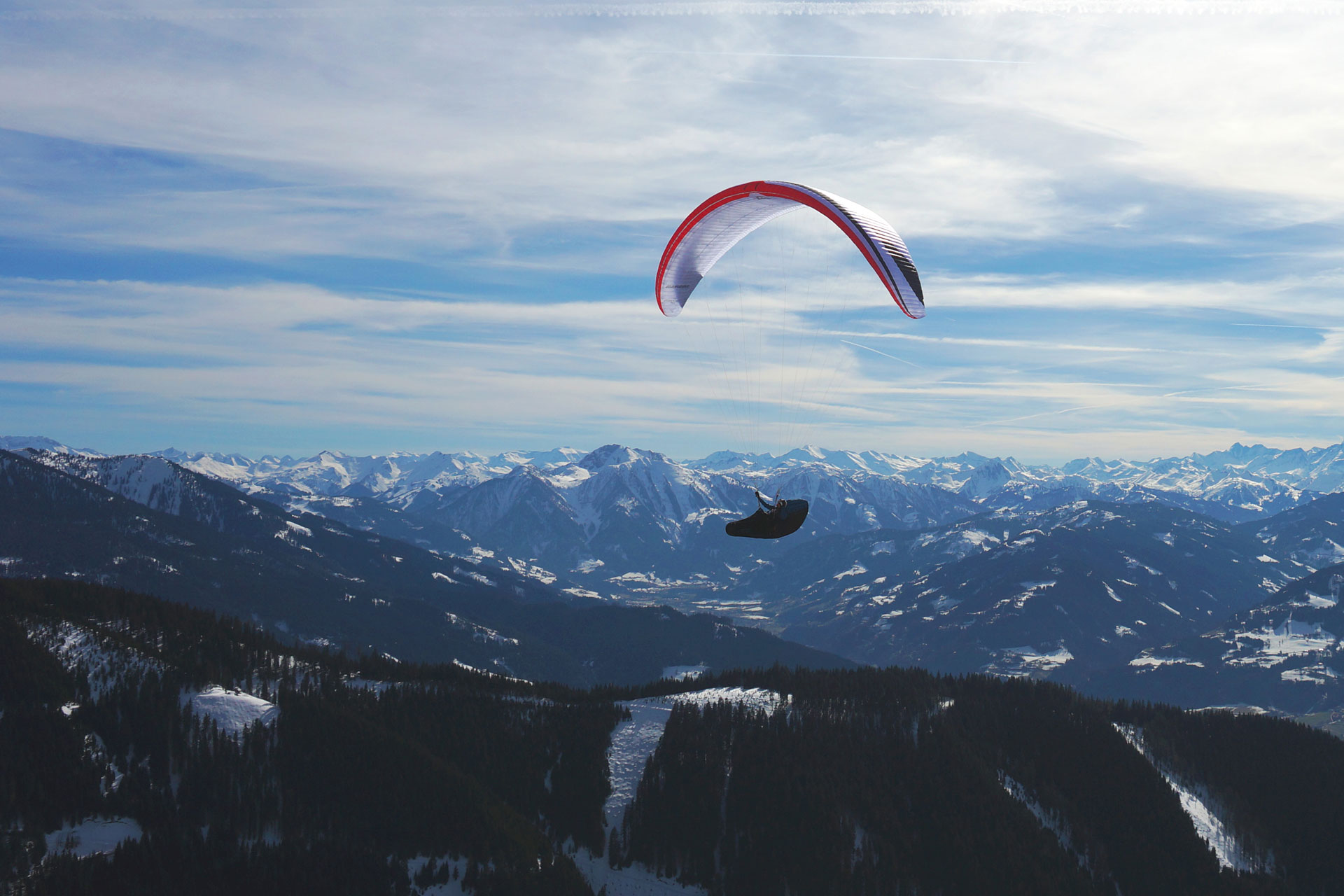

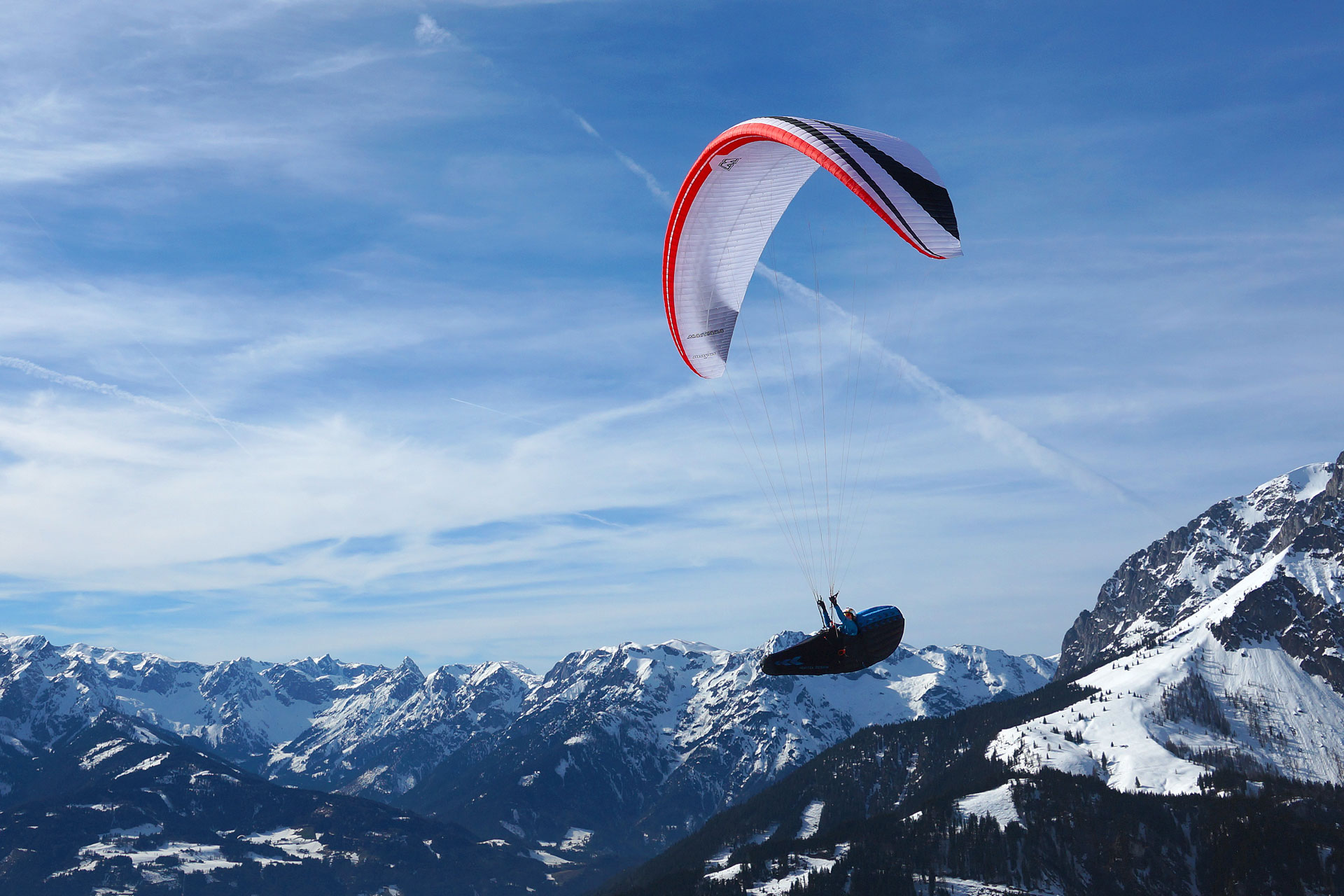

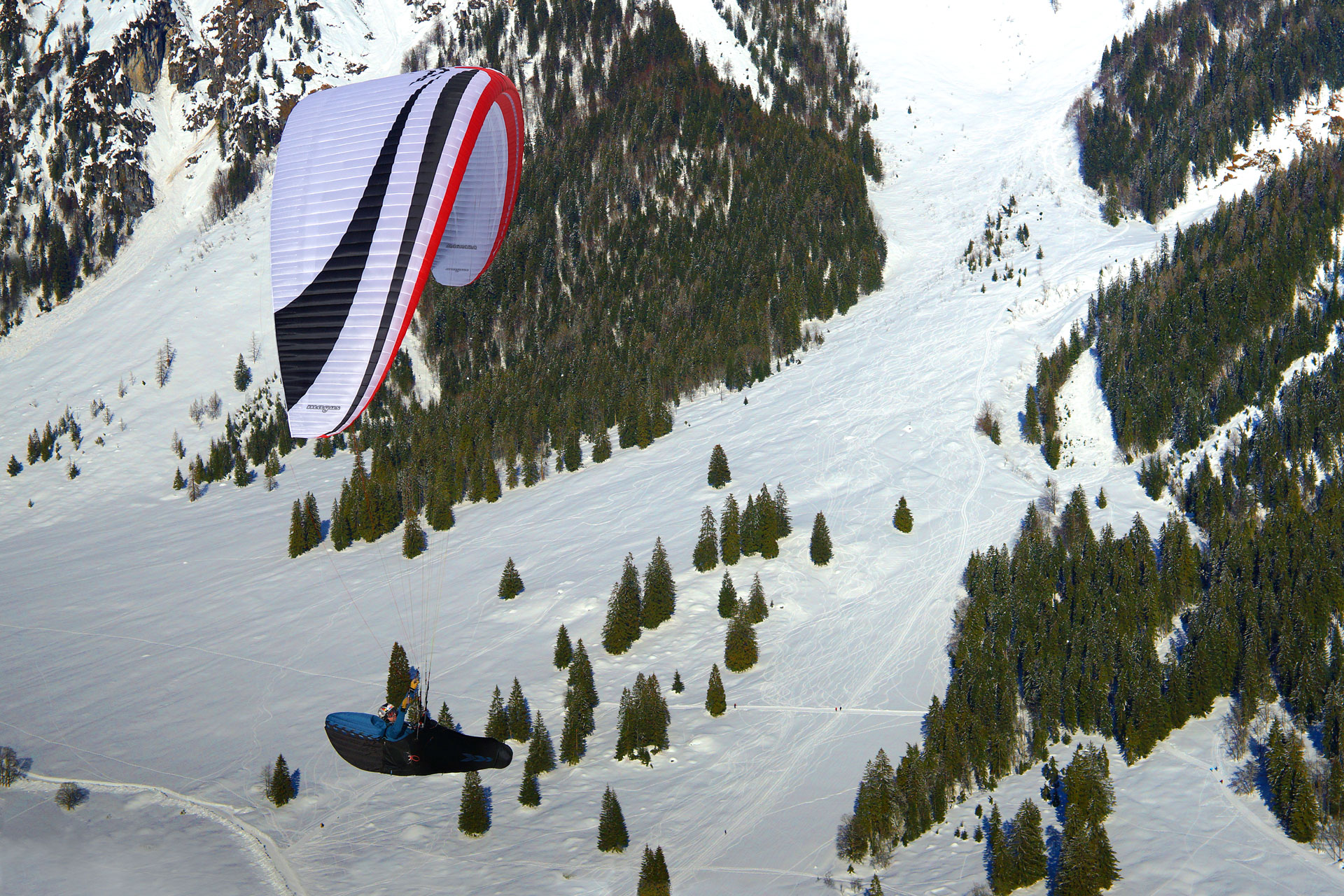

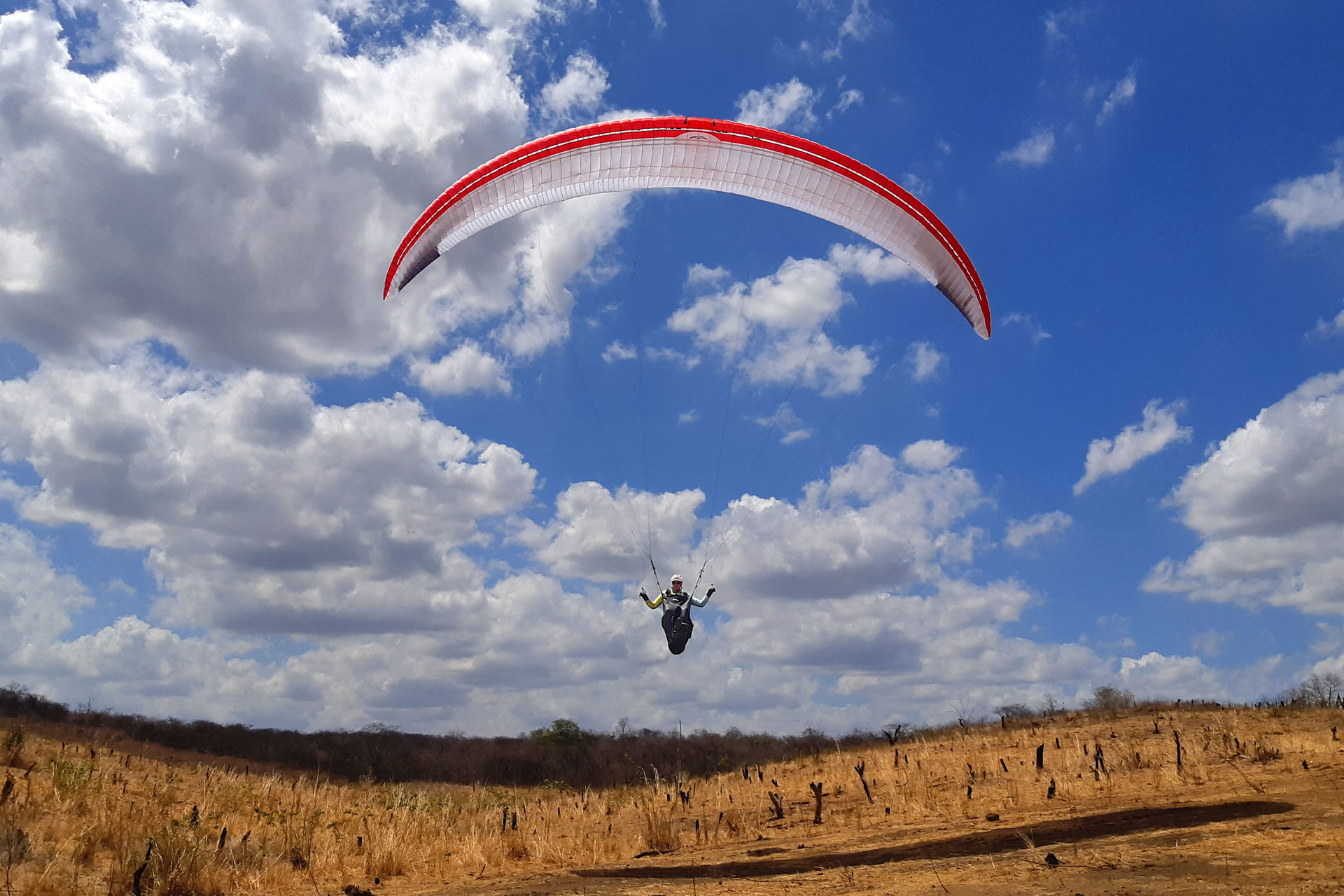

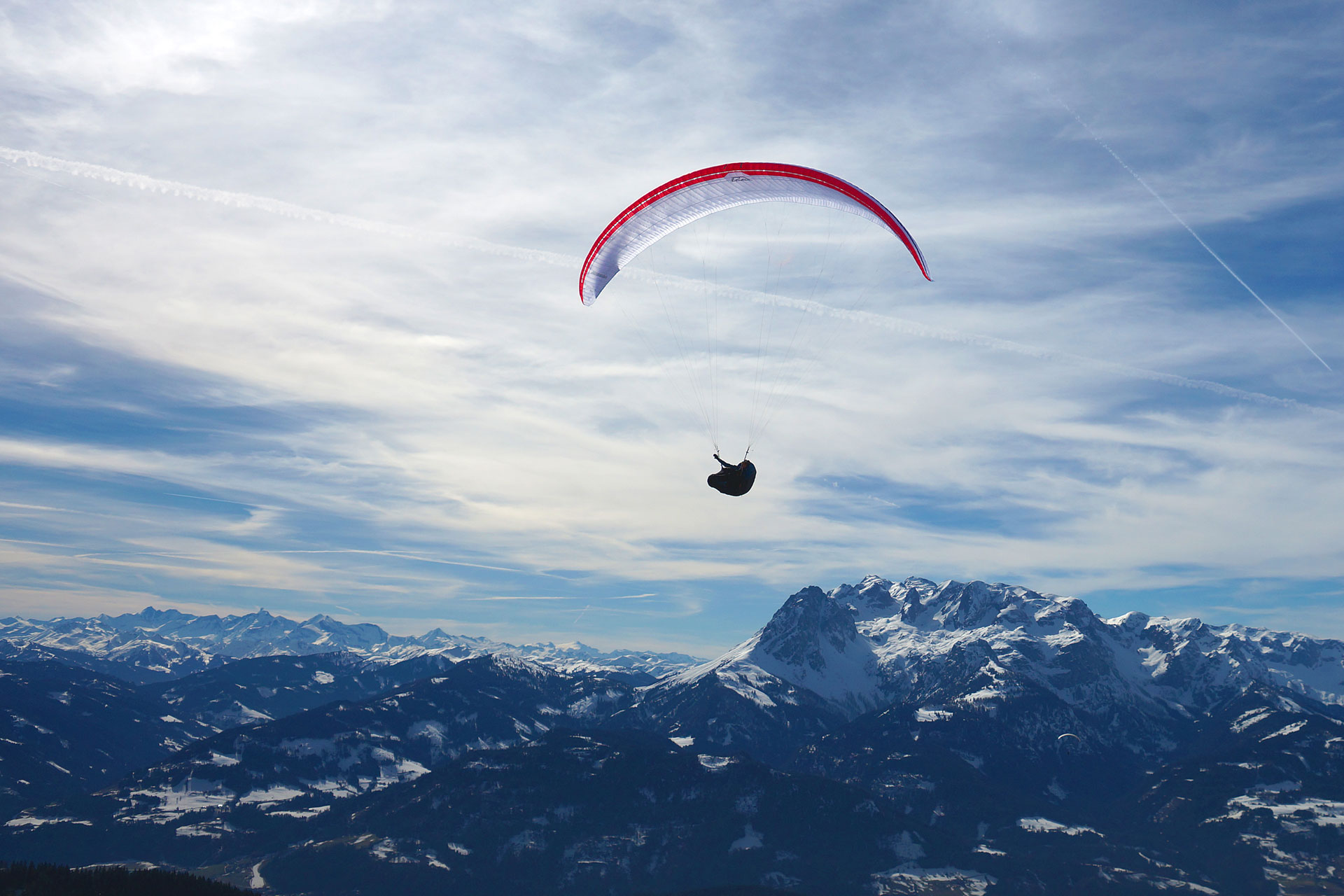

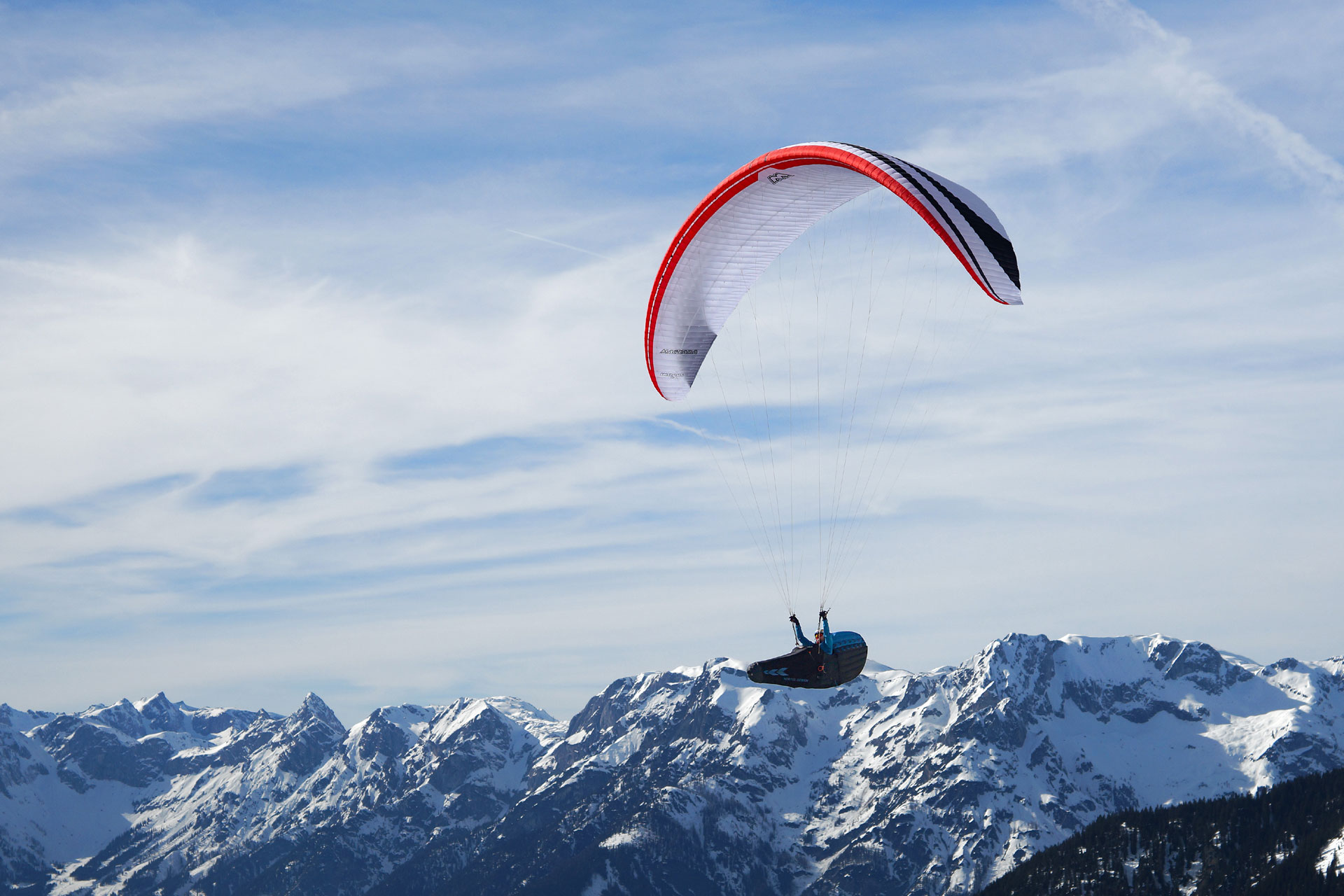

Gallery

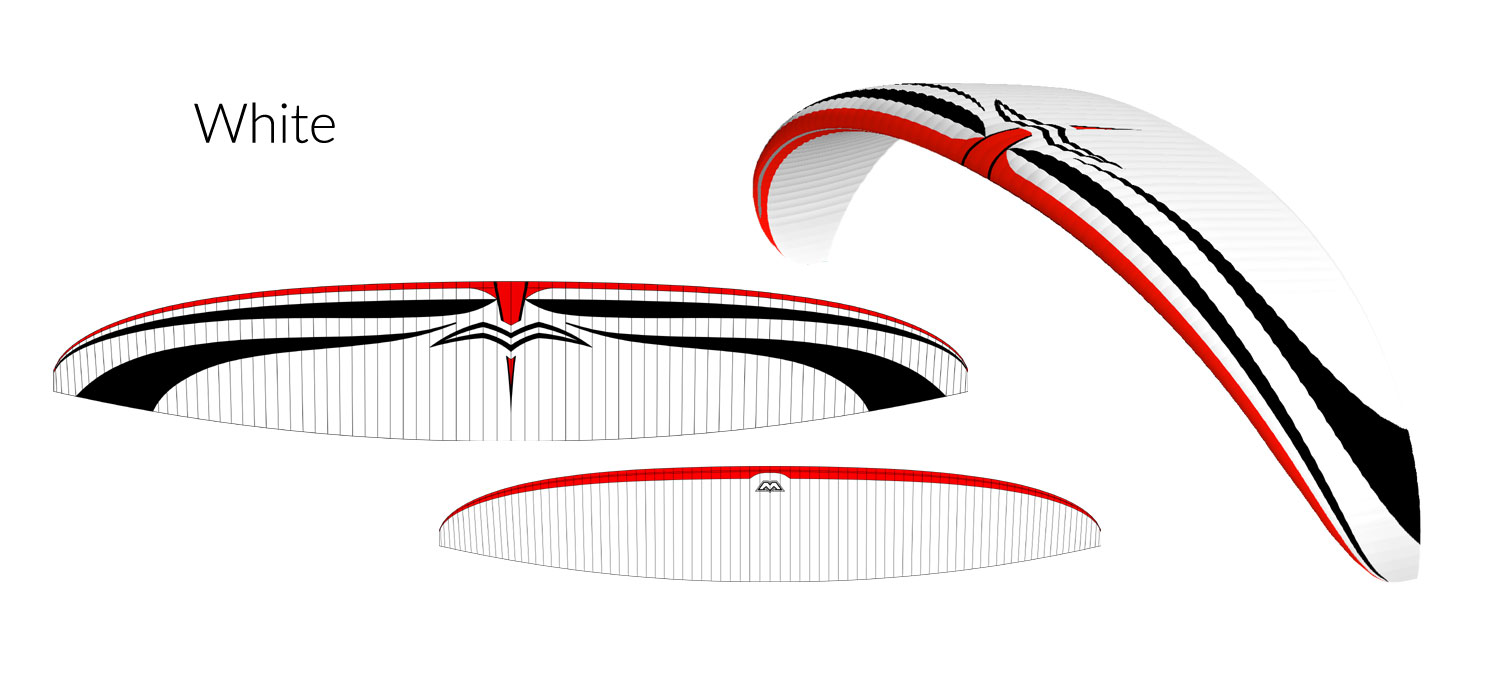

Color Design
