MANIX - enjoy the ride

The Manix is a light, spacious, aerodynamically cut ABS harness suitable for beginners and intermediate experienced pilots. Special plastic reinforcements combined with padded back and shoulder straps are ideal for relaxed sitting position in flight. The back area is made from “breathable” fabric and minimizes sweating. It makes the Manix an unrivalled harness for pilot comfort during long flights.

Quality Construction

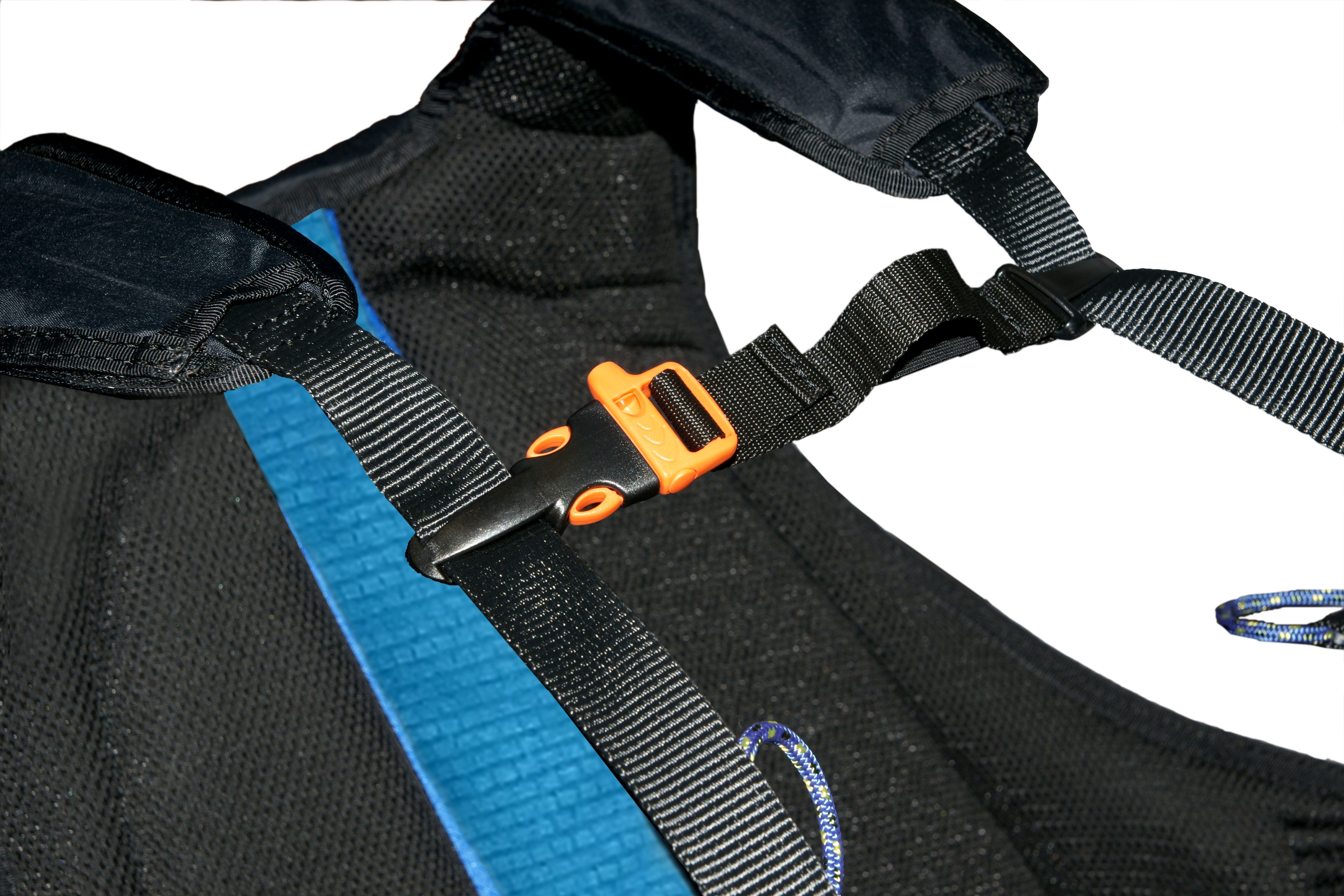

A well designed leg strap system allows the pilot an upright position before and during take-off, making checks very easy and doesn't inhibit take-off. A security T-bar prevents the pilot falling out of the harness if he forgets to fasten the leg straps. The carabineer separation (which controls the sensitivity of the harness) is adjusted by a flat buckle on the chest strap.

A wide range of easy adjustments make the Manix ideal to find preffered sitting position. The seat plate is long enough. Front of the plate is separately adjustable and offers the pilot additional support for his legs combined with improved comfort. Angle of the back part of seat plate can be changed by lateral bottom straps and provide perfect support for loins. .

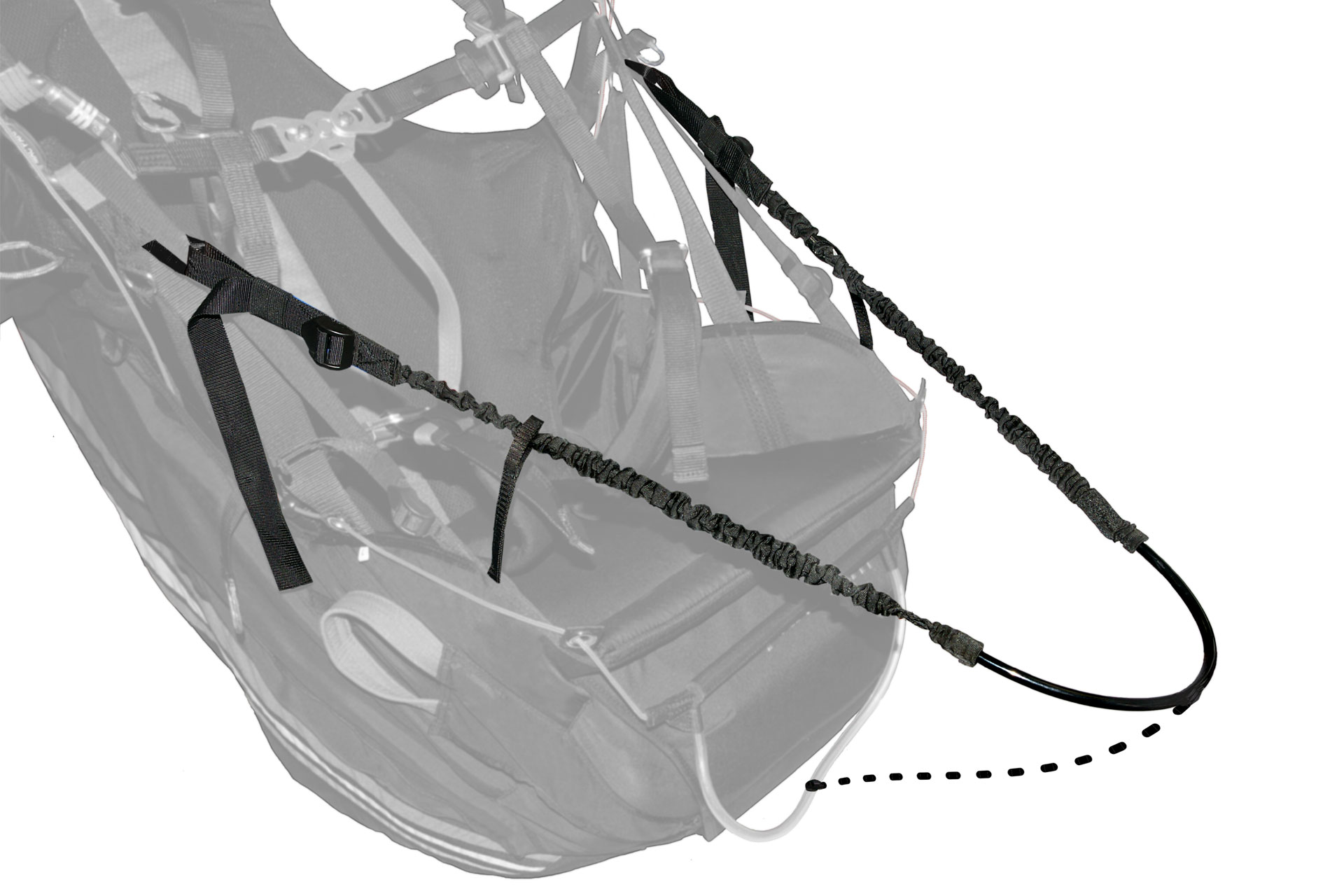

Relax barLight

Pilot who preffers sitting position with legs placed in relax bar can just use light relax bar that is serial delivered with the harness.

Speed it up

The speed-bar maintains the correct position in front of the pilot automatically and makes the use of the speed system during flight very easy. It does not change sitting position when activated. It works very easy.

In case

The rescue canopy container is placed under the pilot's legs towards the front of the seat and is integrated into the shape of the harness.

Manix

It uses a tested “envelope” system with two pins with right-handed deployment. A sufficiently large deployment system guarantees easy removal of the rescue canopy from the outer container. The reserve handle is highly visible and easy to reach. This is light and is positioned high on the right side; it is fastened with Velcro on the harness.

Manix is equiped with a 18 cm foam back protector which leads from back towards the front of the seat and is integrated between the seat and rescue container.

Improved Design

The larger redesigned rear pocket contains foam protector and has plenty of room left over for your rucksack and other goodies. Manix has a large left side pocket to carry items you may need to access in flight.

All MAC PARA harnesses are produced from CORDURA material and precisely made, you can be sure that even after several years use, it will serve you as well as it did when new.

Technical description

Item Material
Max. load: 120 kg
Karabiner distance: 38-50 cm
Weight inclusive back protection
(carbon plate):
5,45 kg / (4,95 kg)
Back protection: Styrofoam protection; 18 cm
Rescue system: Integrated container (envelope system)
under the seat plate with a  lateral handle.
Size:
S up to 165 cm
M 165 - 175 cm
L 175 - 185 cm
XL 185 cm and up

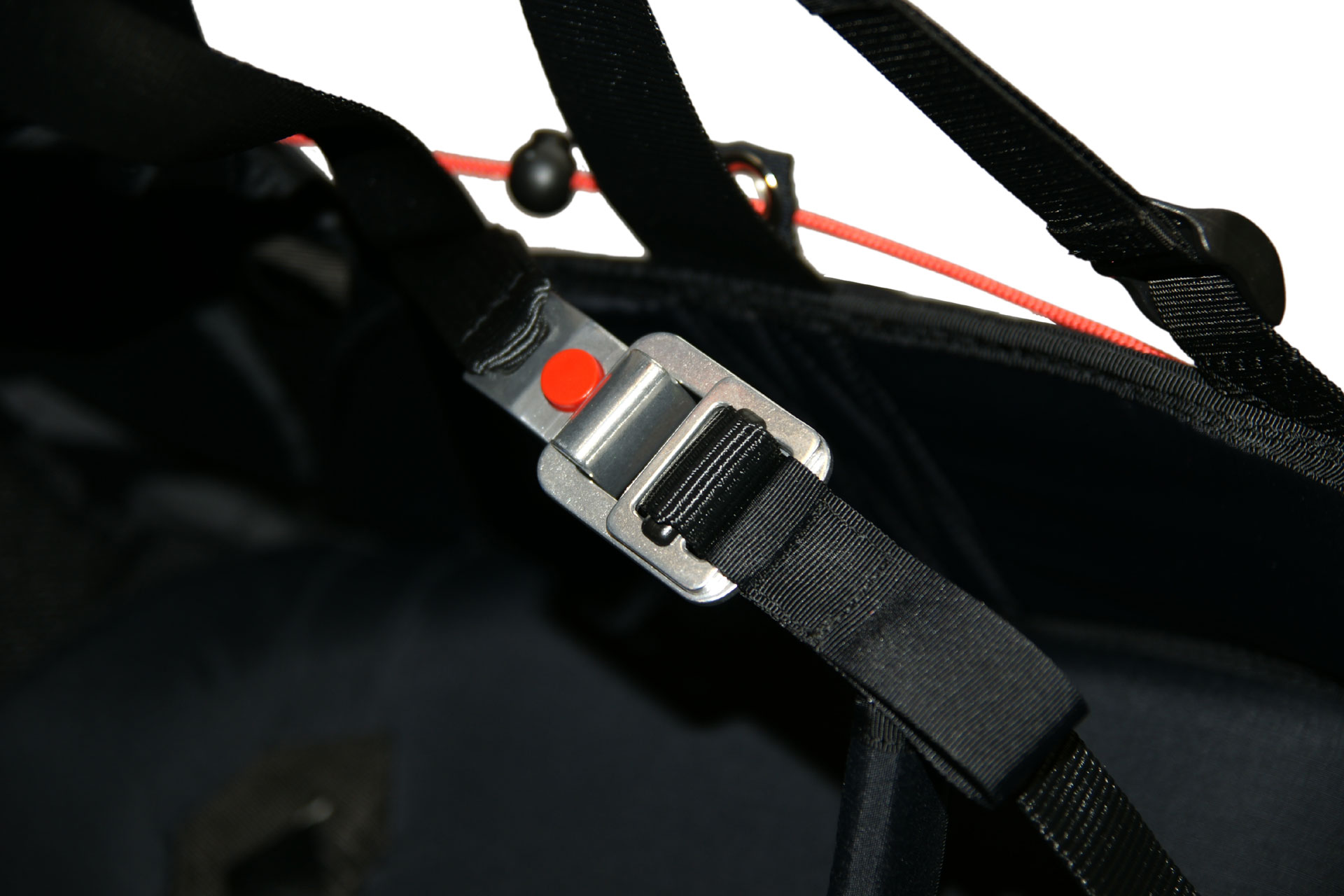

  • Light buckles on  chest and leg straps
  • Austrialpin speed system pulleys and included easy to use two step speed bar
  • 18 cm foam protector as standard
  • Harness sensitivity in-flight adjustable (ABS)
  • Very easy weight shift
  • Large back pocket
  • The reserve handle is highly visible and easy to reach
  • Excellent mobility whilst in the harness
  • Proven Cordura materials
  • Aerodynamically cut with new design look
  • Excellent support to the back and shoulders
  • Weight of the Manix L is  5,45 kg incl. foam protector
  • Manix weight with carbon plate 4, 95 kg incl. foam protector
  • Relax bar included
  • Adjustable angle of seat plate
  • Comfortable support of legs

Photo Gallery

Download files

1920 x 1080
168 KB
4704 x 3616
4 MB
4380 x 3186
5 MB
2596 x 3408
4 MB
3676 x 2848
6 MB
4158 x 3552
4 MB
3966 x 3336
3 MB

Included with the harness

Speed Bar
Inner container for rescue system
Foot bar
Carabiners Lockjaw
