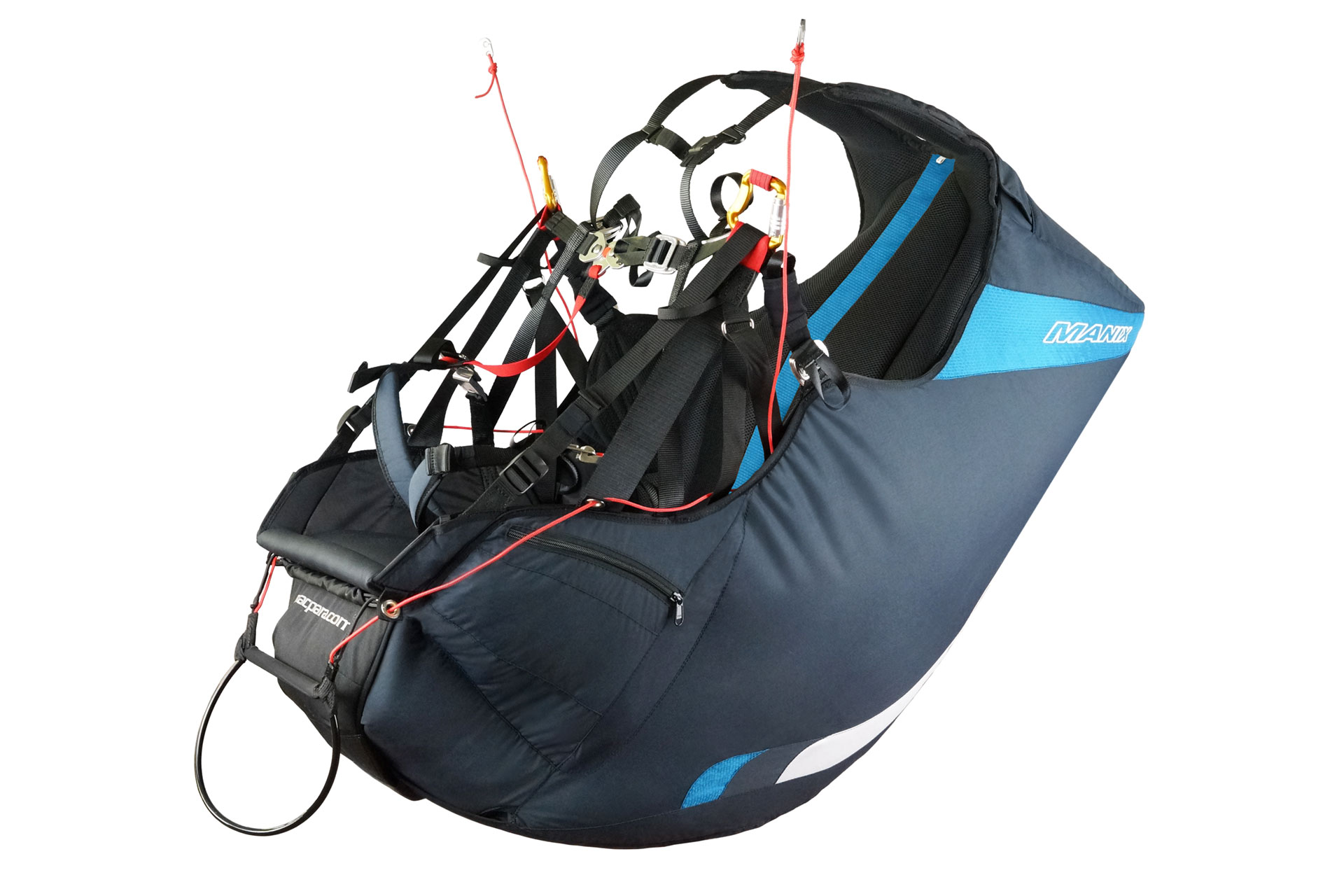

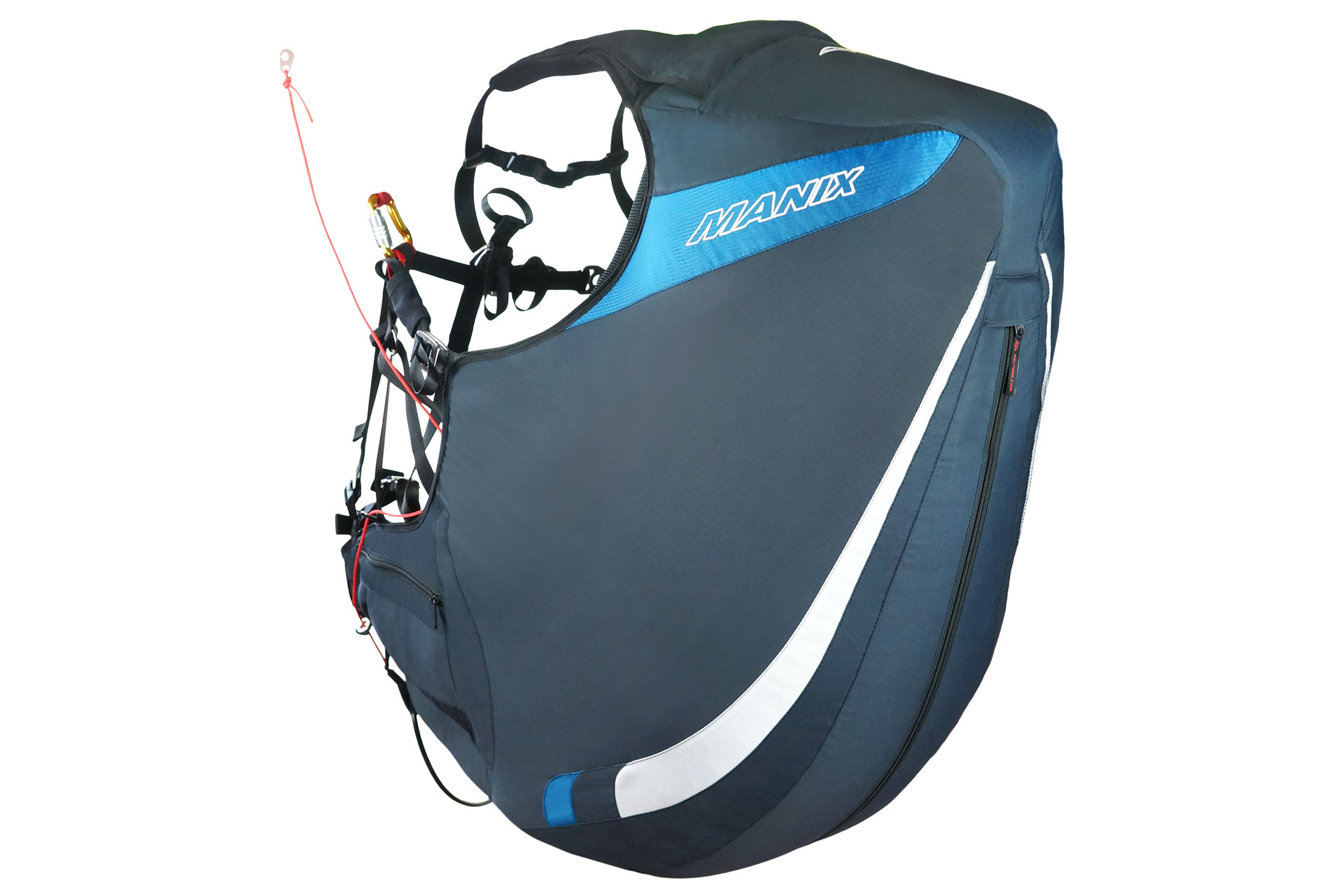

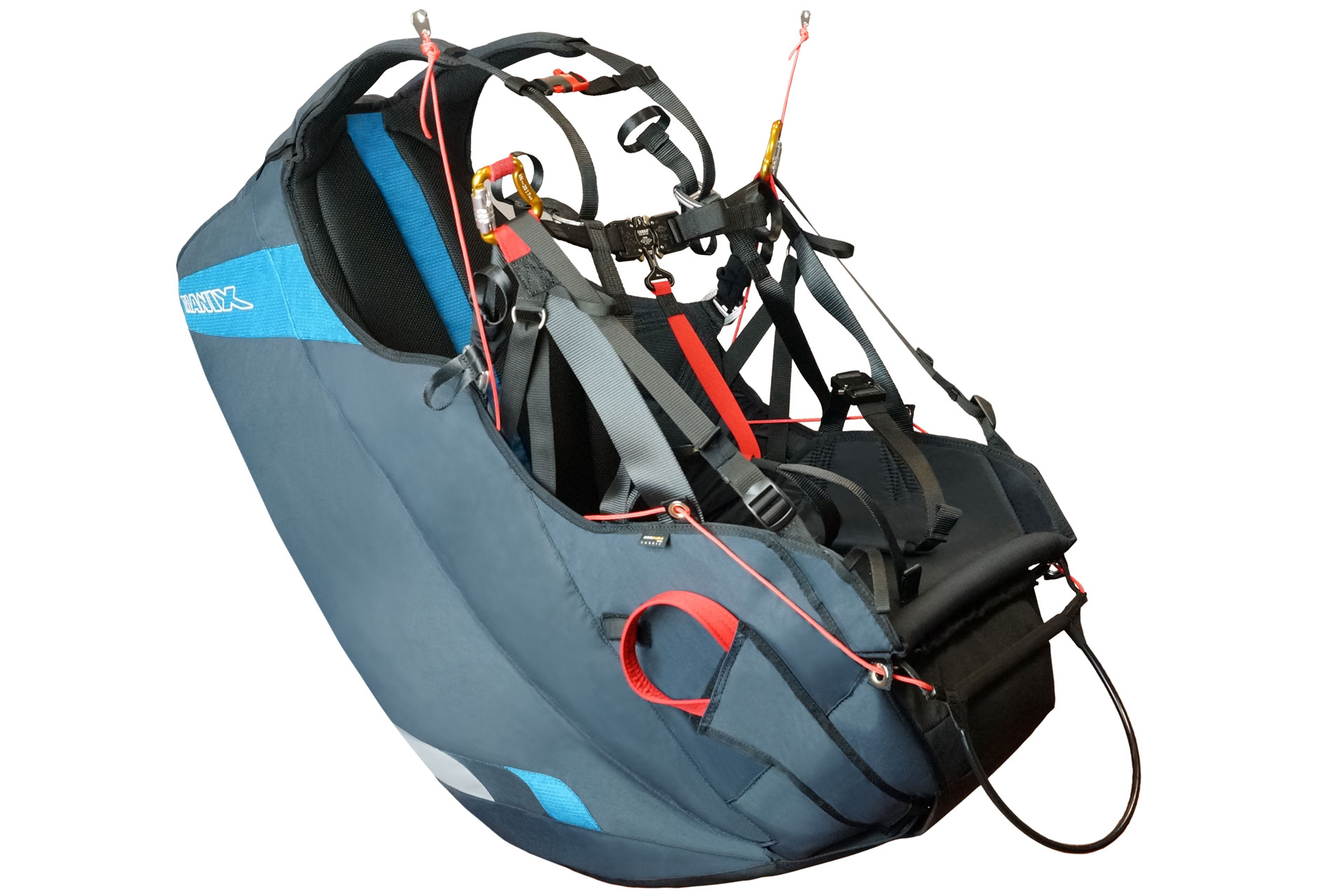

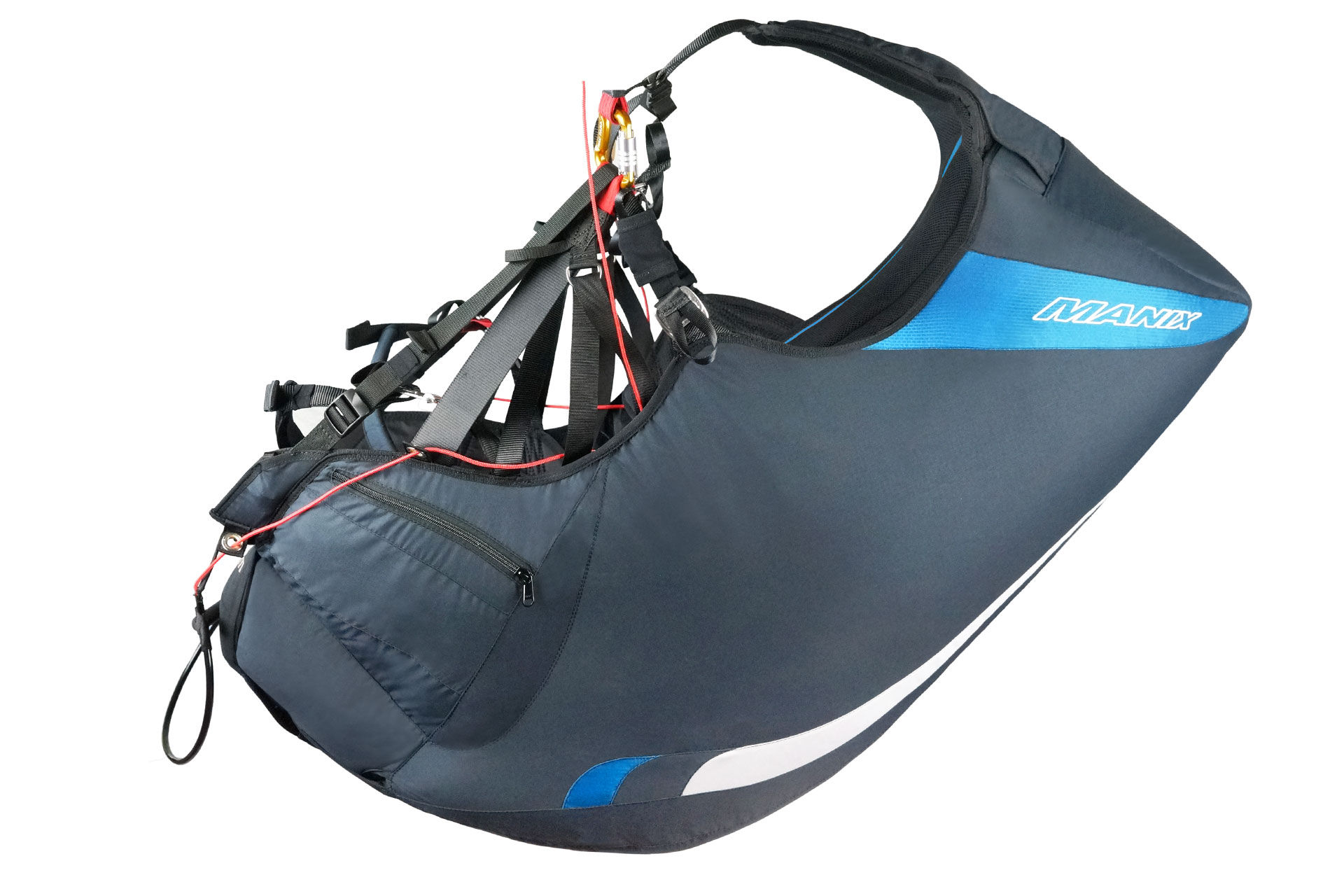

The Manix is a light, spacious, aerodynamically cut ABS harness suitable for beginners and intermediate experienced pilots. Special plastic reinforcements combined with padded back and shoulder straps are ideal for relaxed sitting position in flight. The back area is made from “breathable” fabric and minimizes sweating. It makes the Manix an unrivalled harness for pilot comfort during long flights.

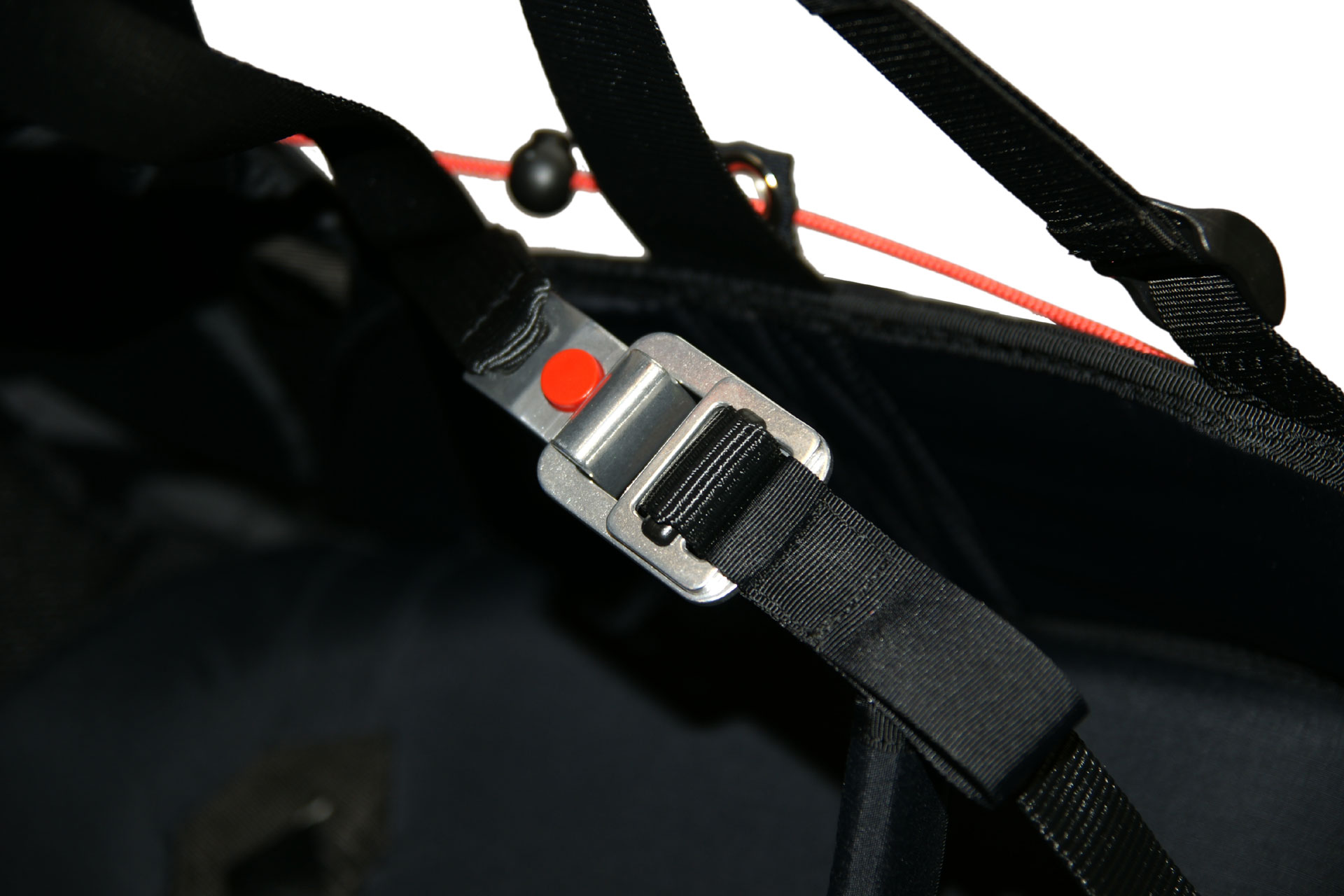

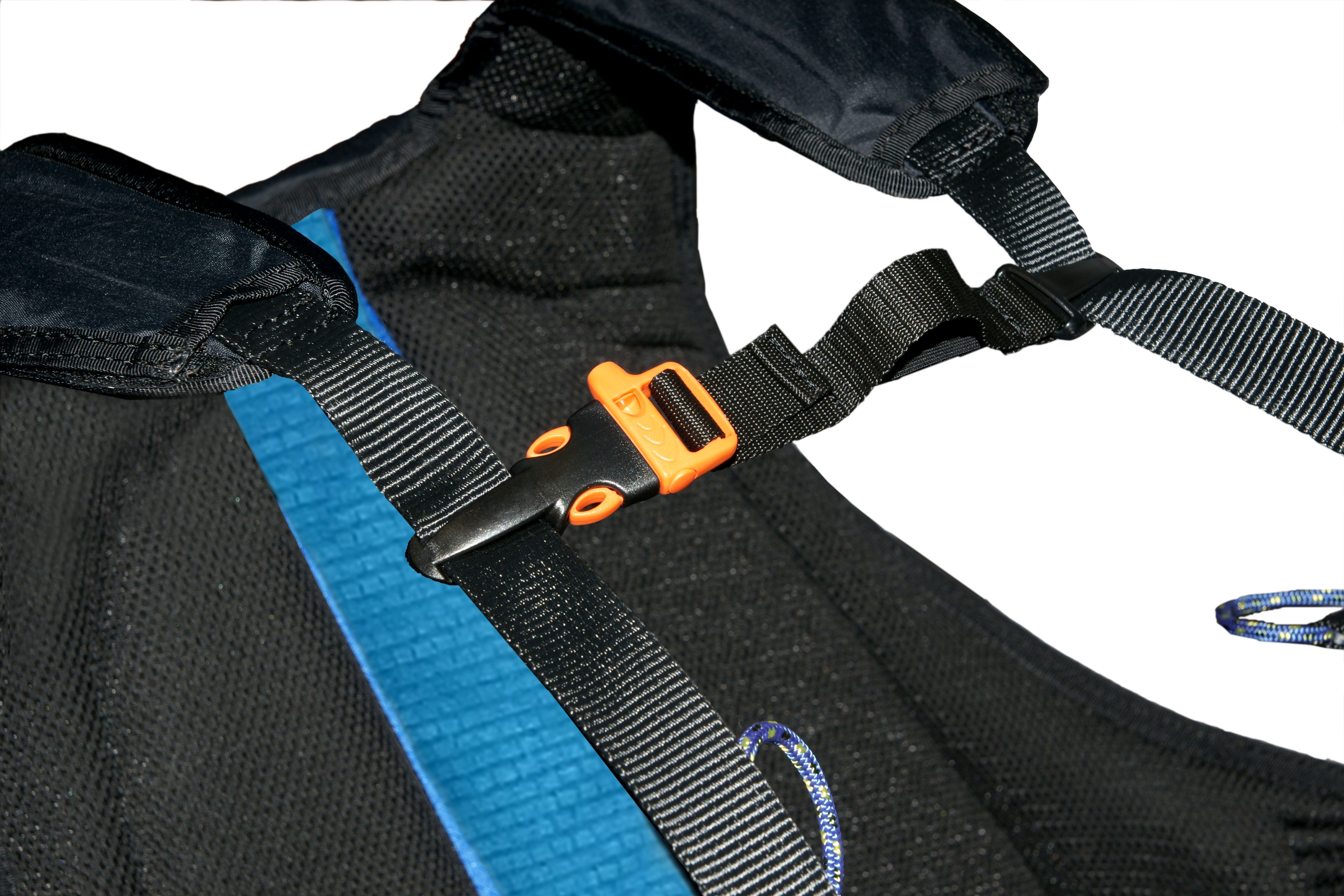

A well designed leg strap system allows the pilot an upright position before and during take-off, making checks very easy and doesn't inhibit take-off. A security T-bar prevents the pilot falling out of the harness if he forgets to fasten the leg straps. The carabineer separation (which controls the sensitivity of the harness) is adjusted by a flat buckle on the chest strap.
A wide range of easy adjustments make the Manix ideal to find preffered sitting position. The seat plate is long enough. Front of the plate is separately adjustable and offers the pilot additional support for his legs combined with improved comfort. Angle of the back part of seat plate can be changed by lateral bottom straps and provide perfect support for loins. .

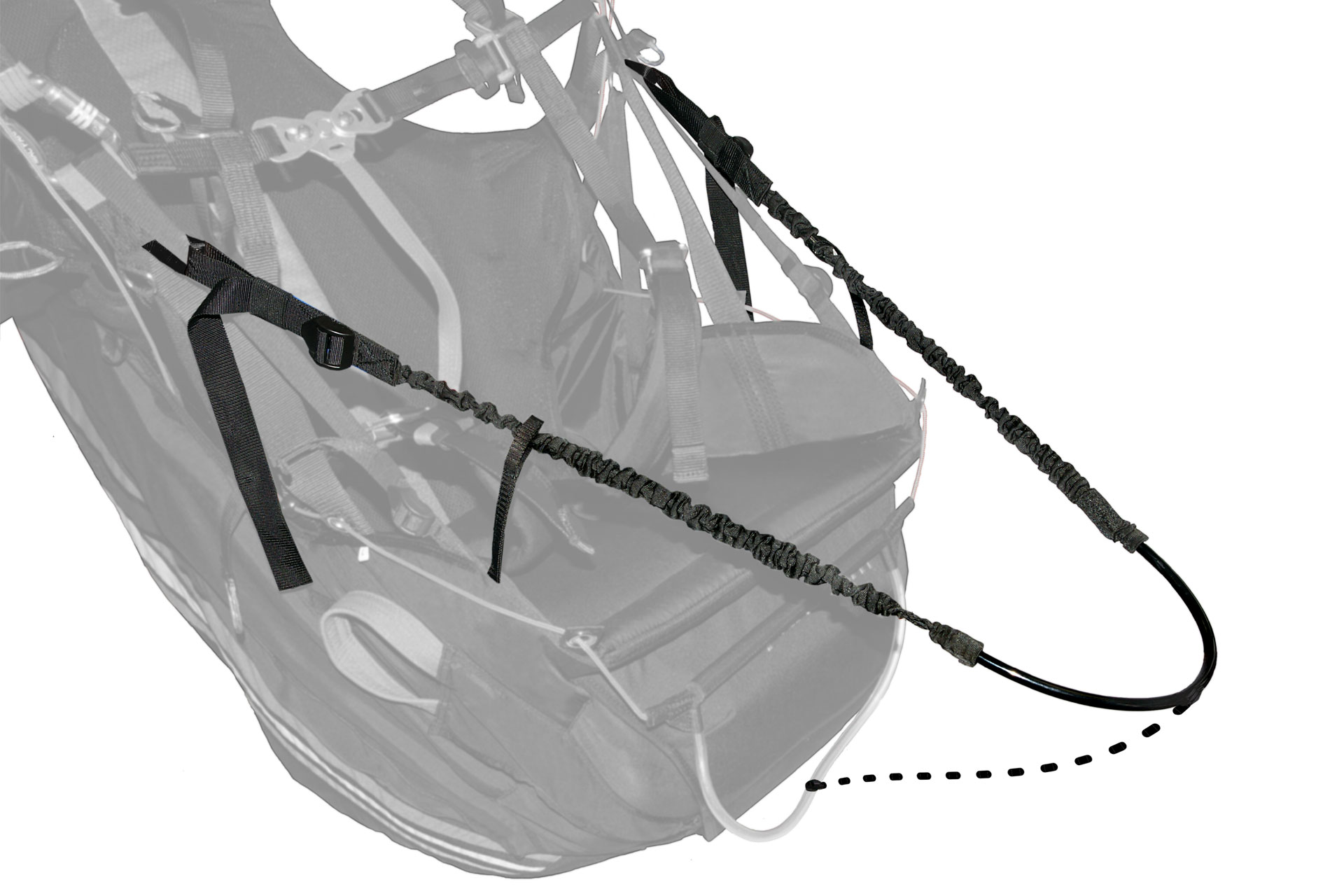

Pilot who preffers sitting position with legs placed in relax bar can just use light relax bar that is serial delivered with the harness.
The speed-bar maintains the correct position in front of the pilot automatically and makes the use of the speed system during flight very easy. It does not change sitting position when activated. It works very easy.
The rescue canopy container is placed under the pilot's legs towards the front of the seat and is integrated into the shape of the harness.
It uses a tested “envelope” system with two pins with right-handed deployment. A sufficiently large deployment system guarantees easy removal of the rescue canopy from the outer container. The reserve handle is highly visible and easy to reach. This is light and is positioned high on the right side; it is fastened with Velcro on the harness.
Manix is equiped with a 18 cm foam back protector which leads from back towards the front of the seat and is integrated between the seat and rescue container.
The larger redesigned rear pocket contains foam protector and has plenty of room left over for your rucksack and other goodies. Manix has a large left side pocket to carry items you may need to access in flight.
All MAC PARA harnesses are produced from CORDURA material and precisely made, you can be sure that even after several years use, it will serve you as well as it did when new.
|Weight inclusive back protection
|5,45 kg / (4,95 kg)
|Styrofoam protection; 18 cm
|Integrated container (envelope system)
under the seat plate with a lateral handle.
|up to 165 cm
|165 - 175 cm
|175 - 185 cm
|185 cm and up
