Descripción del producto

Magus

LTF/EN-D
Share

The MAGUS is a modern two-liner glider, for experienced and skilled pilots. When designing gliders, the priority for R&D team is maximum performance combined with comfort on board. Although the MAGUS is the cutting edge glider with high aspect ratio, we are convinced the MAGUS will delight the pilot with this philosophy.

Flying it

better, safer, faster… ? ...... The MAGUS delivers excellent performance through the whole speed range. The penetration against the wind is exceptional. Like by Eden 7 the leading edge of the MAGUS is using negative shaping and is combined with RFE system on panels (additional rod reinforcement in center of panel). This technology is eliminating leading edge deformations at high speeds and  provide extra performance and helps to overall stability. The benefit of this technology is increased glide and higher stability in accelerated flight.

The handling is direct and agile with efficient climb ability. (see the recommended weight range). The climbing performance and „sniffing ability“ for more lift will put smile on your face.  The canopy is neither too stiff nor does it move too much. It is well balanced and gives nice feedback to the pilot. When flying accelerated the control over rear-risers is easy with low forces.

Design

AR 7, optimized attachment points, 86 cells, clean leading edge, positive and negative 3D shapings, RFE system, special system for different accelerator travel of central and external parts of the wing, lightweight construction.

Magus

Make your own mind, test it by yourself.

The Materials

The materials on the MAGUS is a mix of  Skytex tissues from  Porcher Sport.  Light materials are combined with heavier materials for higher durability. These lightweight and high performance materials require care and caution on the ground.

Available Colours and sizes

The Magus is available in 3 sizes and 2 serial designs (white and blue).

Características técnicas

Magus 22 (S) 24 (M) 26 (L)
Factor zoom [%] 96 100 104.5
Superficie de planta [m2] 22.35 24.25 26.48
Superficie proyectada [m2] 17.69 19.2 20.97
Envergadura de planta [m] 12.53 13.05 13.64
Alargamiento de planta 7.05 7.02 7.02
Cuerda central [m] 2.25 2.34 2.45
Cajones 86 86 86
Peso [kg] 5.5 5.7 6
Rango de pesos *[kg] 88 - 99 95 - 107 104 - 118
Velocidad mínima [km/h] 25 - 26 25 - 26 25 - 26
Velocidad normal [km/h] 39 - 41 39 - 41 39 - 41
Vel. Máxima
(accelerador)[km/h]
60 - 62 60 - 62 60 - 62
Planeo máximo +11 +11 +11
Tasa de caída mínima [m/s] 1 1 1

* piloto equipado = peso desnudo + 20 Kg aprox.

Materiales empleados

Ítem Material
Extradós delantero: Skytex 38 Universal - E25A, 38 g/m2
Extradós trasero: Skytex 32 Universal - E3W, 32 g/m2
Intrados: Skytex 27 Classic II - E71A, 27 g/m2
Costillas principales: Skytex 32 Hard - E29A, 32 g/m2
Diagonales: Skytex 32 Hard - E29A, 32 g/m2
Costillas secundarias: Skytex 32 Hard - E29A, 32 g/m2
Líneas superiores: Edelrid Aramid/Kevlar
8000U -25; -50 ; -70; -90; -130; -190 kg
Lineas principales: Edelrid Aramid/Kevlar
8000U -130, -190; -280; -360 kg

La Magus está producida usando los mejores materiales ligeros disponibles, con una excelente durabilidad, como el Skytex 27, 32 y 38, de Porcher Marine. Para las costillas y las diagonals hemos utilizado el Skytex 32 (Hard). Esta elección da la ventaja de tener una vela a la vez ligera y muy duradera.

Galería de fotos y vídeos

Colores

Descarga

4558 x 3039
7 MB
6000 x 2669
5 MB
5784 x 4004
17 MB
6000 x 4000
10 MB
5086 x 3391
10 MB
4994 x 3329
5 MB

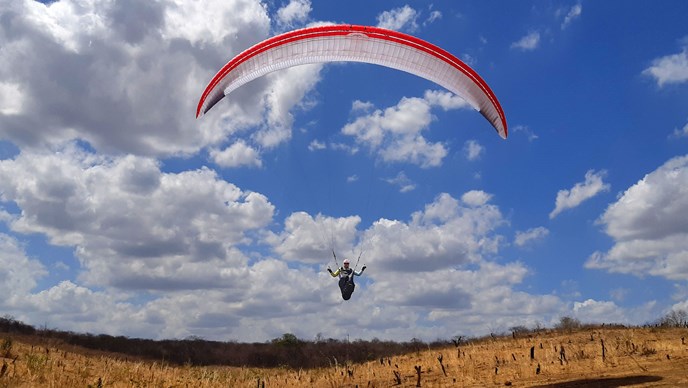

Reportes
